CUBE NUTRAIL 2017

MTB Fatbike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
14,95 kg
Front travel
100mm
CUBE NUTRAIL 2017

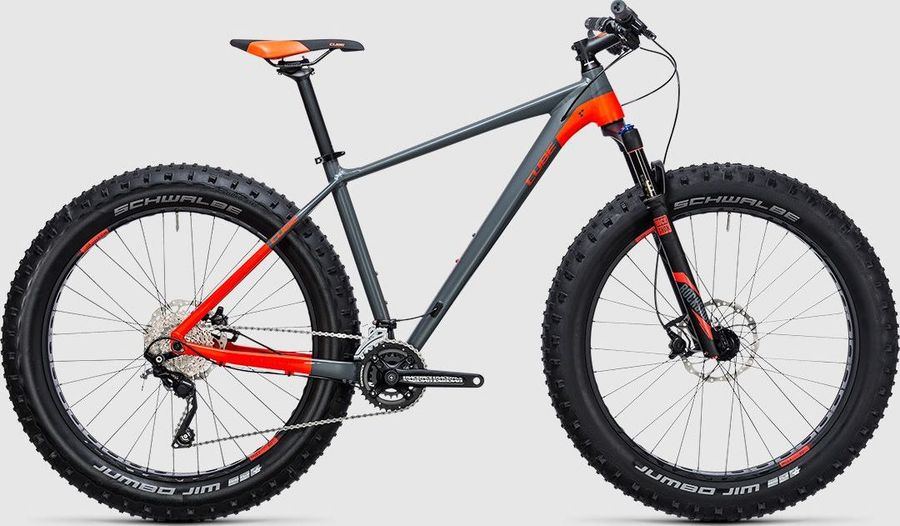

About the CUBE NUTRAIL 2017

The CUBE NUTRAIL 2017 is a Hardtail Fatbike Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,95 kg.

Features

The CUBE NUTRAIL 2017 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE Performance Grip
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Cube Active 1.1
Headset
FSA Orbit 1.5B ZS-1, Semi-Integrated, Top 1 1/8" Bottom 1 1/2"
Seatpost
CUBE Performance Post, 30.9mm
Handlebar
CUBE Rise Trail Bar 700mm
Brakes
Magura MT2
Drivetrain
Crankset
Race Face Ride, 22x36T, 175mm, Pressfit
Shifter
Shimano Deore SL-M610, Rapidfire-Plus
Front derailleur
Shimano Deore FD-M617-E, E- Type, Sideswing
Rear derailleur
Shimano RD-M786-SGS 266 g SGS 10s
Average weight (g)
266
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M786-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
HPA Superlite, Advanced Hydroforming, Triple Butted, ARG, Tapered Head Tube, Internal Cable Routing, PressFit BB
Front suspension
RockShox Bluto RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
51mm (26")
Max tire width (mm)
116
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-BLTO-RL-A4
Name
Bluto RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
26"
Wheels
Rims
Answer FAT Atac, 15mm*150mm / X12*197mm
Tires
Schwalbe Jumbo Jim, Kevlar, 4.4"

Geometry

Size 15" 17" 19" 21"
a
Seat tube length
370,0
420,0
470,0
515,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
574,0
591,5
613,0
632,0
d
Head tube length
105,0
105,0
115,0
125,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
77,0
77,0
77,0
77,0
h
Wheelbase
1093,0
1110,0
1132,0
1152,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
k
Stack height
629,0
629,0
638,0
647,0
l
Reach
385,0
402,0
421,0
437,0
m
Standover height
-
-
-
-
x
Bottom bracket height
278,0
278,0
278,0
278,0
y
Front center
654,0
671,0
693,0
713,0
