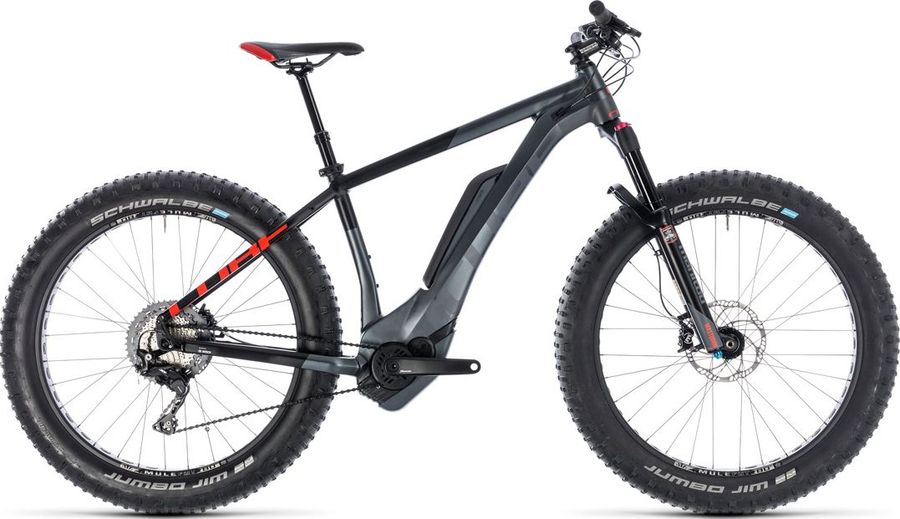

CUBE NUTRAIL HYBRID 500 2019

E-Bike

MTB Fatbike

Groupset

Shimano XT

Frame material

Alloy

Wheel size

29"

Suspension type

Hardtail

Weight

24,3 kg

Front travel

120mm

About the CUBE NUTRAIL HYBRID 500 2019

The CUBE NUTRAIL HYBRID 500 2019 is a Hardtail Fatbike Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 24,3 kg.

Features

The CUBE NUTRAIL HYBRID 500 2019 has 3 features listed below.

Internal routing More info

Hydraulic disc brakes More info

Tapered head tube More info

Specifications

Acessories
Grip	CUBE Race Grip 31mm, 1-Clamp
Pedals	CUBE PP MTB
Remote	Bosch Purion

Components
Steam	Race Face Ride 35
Saddle	Selle Royal Voga
Battery	Bosch PowerPack 500
Charger	Bosch 4A
Headset	FSA 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost	CUBE 120mm Adjustable Seatpost, Handlebar Lever, Internal Cable Routing, 30.9x420mm
Handlebar	Race Face Ride 35, 760mm
Brakes	Magura MT5

Drivetrain
Crankset	CUBE Fat Crank, 16T, 170mm
Motor	Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter	Shimano XT SL-M8000, 11-Speed
Rear derailleur	Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g) 271 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-GS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage GS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 39T
Cassette	Shimano SLX CS-M7000-11 HG
Aluminum gear pieces 1 (11-40T) 1 (11-42T) 2 (11-46T) Aluminum spider arm finish Anodized Aluminum spider arm pieces 1 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Plated Lock ring material Steel Model CS-M7000-11 Steel gear finish Shot-Ni Steel gear pieces 10 (11-40T) 10 (11-42T) 9 (11-46T) Type HG Weights 11-40T: 450g 11-42T: 476g 11-46T: 482g
Chain	KMC X11

Frameset
Frame	Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Double Butted, Tapered Headtube, Boost, AXH, Internal Cable Routing, Semi-Integrated Battery
Front suspension	Manitou Mastodon Comp

Wheels
Rims	Answer Fat Atac 80SL, HR 12x177mm, VR 15x150mm
Tires	Schwalbe Jumbo Jim Kevlar 4.0, Addix Speedgrip, Tubeless Easy

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XT 1 × 11

Crank: 16T

Cassette: 11-46T

Speeds: 11s

Gearing

Average

0,35

Average

1,46

Compared to similar bikes, the CUBE NUTRAIL HYBRID 500 2019 has an excellent uphill performance and a bad downhill performance.

Report incorrect information

Geometry

Size	17"	19"	21"
a Seat tube length	405,0	450,0	495,0
b Seat tube angle	73,0º	73,0º	73,0º
c Top tube length	593,0	614,0	633,0
d Head tube length	113,0	123,0	133,0
e Head tube angle	69,0º	69,0º	69,0º
f Rake	50,0	51,0	51,0
g Trail	90,0	89,0	89,0
h Wheelbase	1154,0	1176,0	1196,0
i Chainstay length	489,0	489,0	489,0
j Bottom bracket drop	58,0	58,0	58,0
k Stack height	630,0	639,0	648,0
l Reach	402,0	420,0	436,0
m Standover height	-	-	-
x Bottom bracket height	316,0	316,0	316,0
y Front center	671,0	693,0	713,0
