BikeWise

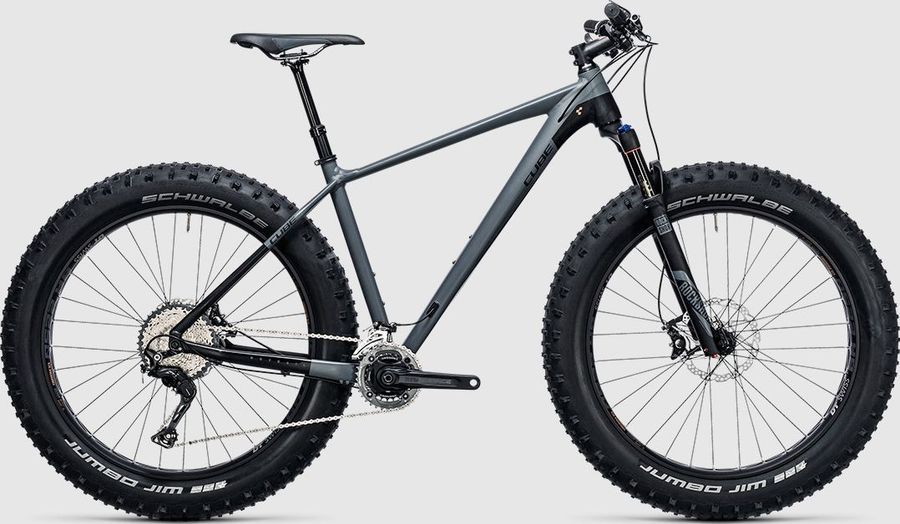

CUBE NUTRAIL Race 2017

MTB Fatbike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
14,7 kg
Front travel
100mm
CUBE NUTRAIL Race 2017

About the CUBE NUTRAIL Race 2017

The CUBE NUTRAIL Race 2017 is a Hardtail Fatbike Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,7 kg.

Features

The CUBE NUTRAIL Race 2017 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE Race Grip, 1-Clamp
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Selle Italia SC1
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE 120mm Adjustable Seatpost, Handlebar Lever, Internal Cable Routing, 30.9x420mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Race Face Ćffect SL, 34x24T, Fat Bike Axle, PressFit
Shifter
Shimano XT SL-M8000-I, Direct Attach
Front derailleur
Shimano XT FD-M8020-E, E- Type, Side Swing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
HPA Superlite, Advanced Hydroforming, Triple Butted, ARG, Tapered Head Tube, Internal Cable Routing, PressFit BB
Front suspension
RockShox Bluto RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
51mm (26")
Max tire width (mm)
116
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-BLTO-RL-A4
Name
Bluto RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Wheel size
26"
Wheels
Rims
CSW FAT, 16mm*150mm / X12*197mm
Tires
Schwalbe Jumbo Jim, Kevlar, 4.4"

Geometry

Size 15" 17" 19" 21"
a
Seat tube length
370,0
420,0
470,0
515,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
574,0
591,5
613,0
632,0
d
Head tube length
105,0
105,0
115,0
125,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
77,0
77,0
77,0
77,0
h
Wheelbase
1093,0
1110,0
1132,0
1152,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
k
Stack height
629,0
629,0
638,0
647,0
l
Reach
385,0
402,0
421,0
437,0
m
Standover height
-
-
-
-
x
Bottom bracket height
278,0
278,0
278,0
278,0
y
Front center
654,0
671,0
693,0
713,0
