BikeWise

CUBE RACE ONE 2019

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
13,5 kg
Front travel
100mm
CUBE RACE ONE 2019

About the CUBE RACE ONE 2019

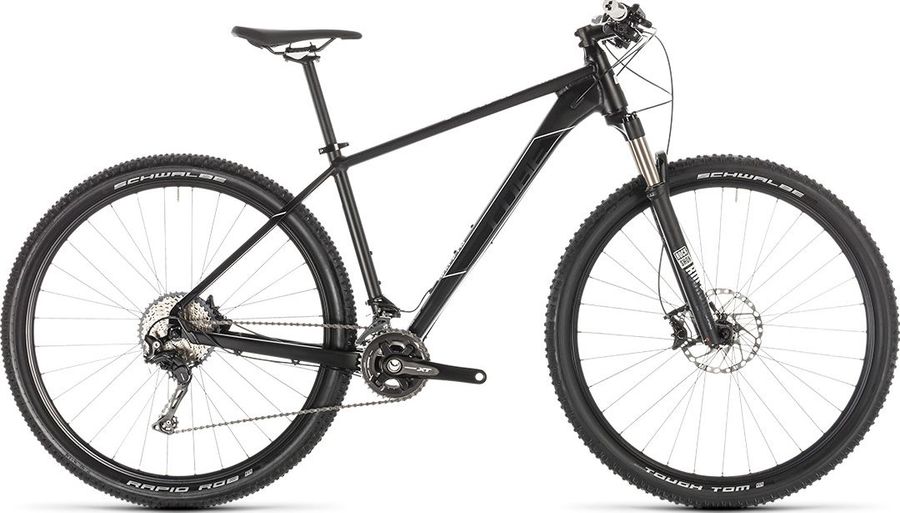

The CUBE RACE ONE 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 13,5 kg.

Features

The CUBE RACE ONE 2019 has 3 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE Performance Grip
Pedals
CUBE PP MTB
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Natural Fit Active
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Rise Trail Bar, 680mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano XT FC-M8000, 36x26T, 175mm
Shifter
Shimano XT SL-M8000-I, Direct Attach
Front derailleur
Shimano XT FD-M8020-H, Sideswing, 31.8mm Clamp
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Aluminium Lite, AMF, ARG, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, PressFit BB
Front suspension
RockShox Recon Silver TK Coil, Solo Air 2166 g
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-RCNS-TK-C1
Name
Recon Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 80mm
Upper tube type
32mm straight wall steel
Weight based on
27.5", Tapered AL steerer, 9mm QR lower leg, Coil
Weight
2166
Wheel size
26", 27.5", 29"
Wheels
Rims
Rodi Viper 21, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Rear hub
Shimano Deore FH-M6000, Centerlock
Front hub
Shimano Deore HB-M6000, Centerlock

Geometry

Size 14" 16" 17" 18" 19" 21" 23"
a
Seat tube length
355,0
405,0
420,0
450,0
470,0
515,0
565,0
b
Seat tube angle
74,0º
73,5º
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
551,0
567,0
581,0
591,0
601,0
621,0
641,0
d
Head tube length
106,0
109,0
109,0
129,0
120,0
130,0
145,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
42,0
42,0
51,0
42,0
52,0
50,0
51,0
g
Trail
91,0
91,0
89,0
91,0
88,0
90,0
89,0
h
Wheelbase
1058,0
1069,0
1111,0
1094,0
1132,0
1152,0
1174,0
i
Chainstay length
433,0
433,0
456,0
433,0
456,0
456,0
456,0
j
Bottom bracket drop
51,5
51,5
65,0
51,5
65,0
65,0
65,0
k
Stack height
601,0
604,0
629,0
623,0
639,0
649,0
663,0
l
Reach
380,0
390,0
397,0
408,0
413,0
431,0
447,0
m
Standover height
-
-
-
-
-
-
-
x
Bottom bracket height
304,0
304,0
309,0
304,0
309,0
309,0
309,0
y
Front center
630,0
641,0
663,0
666,0
684,0
704,0
726,0
