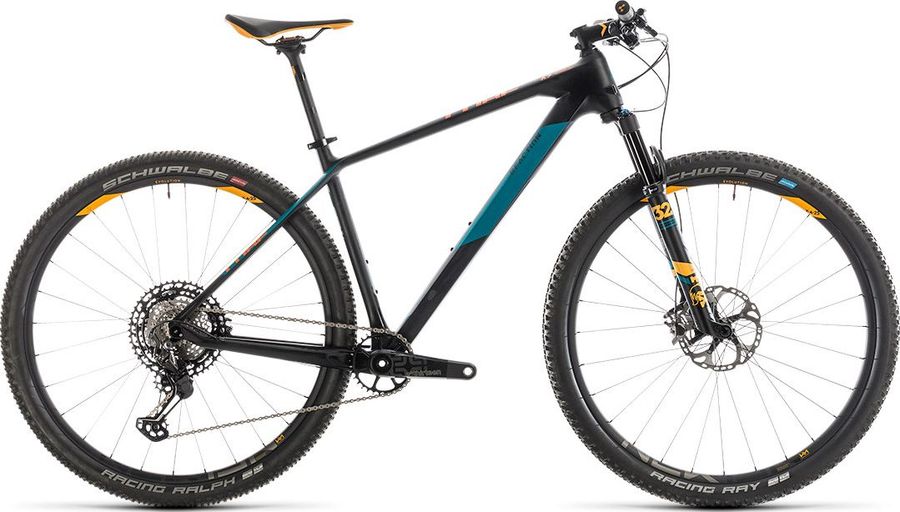

CUBE REACTION C:62 ONE 2019

MTB Cross Country

Groupset

Shimano XTR

Frame material

Carbon

Wheel size

29"

Suspension type

Hardtail

Weight

9,5 kg

Front travel

100mm

About the CUBE REACTION C:62 ONE 2019

The CUBE REACTION C:62 ONE 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 9,5 kg.

Features

The CUBE REACTION C:62 ONE 2019 has 6 features listed below.

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Tapered head tube More info

Remote lockout More info

Tubeless ready More info

Specifications

Acessories
Grip	CUBE Race SL Grip 29.5, 1-Clamp

Components
Steam	Newmen Evolution 318.4, 31.8mm
Saddle	Natural Fit Active Race
Headset	FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost	Cube Performance Motion Post, Carbon, 27.2mm
Handlebar	Newmen Advanced SL 318.0, Carbon, 740mm
Brakes	Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g) 312 (BL-M9100) Brake hose color kit Black Brake hose kit SM-BH90-SS Brake type Hydraulic disc brake Caliper finish Anodizing Caliper material Aluminum caliper.mono_body Caliper fixing bolt anti loosen method Wiring Caliper fixing bolt material Ti Caliper fixing bolt tool size ** 4 mm Primary color Series color Hose joint Straight J-Kit spec for OEM Model BR-M9100 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard K03Ti Resin pad w/o fin (w/ titanium back plate) Pad standard K04Ti Metal pad w/o fin (w/ titanium back plate) Pad mount Pad axle Piston 2 Piston material Ceramic

Drivetrain
Crankset	e*thirteen XCX Race Mountain Carbon, 32T
Shifter	Shimano XTR SL-M9100-I Direct Attach
Chain	Shimano CN-M9100 242 g
Average weight (g) 242 Chromizing treatment roller link pin Model CN-M9100 Pin link plate SIL-TEC Roller SIL-TEC Roller link plate Chromizing Type HG 12-speed
Cassette	Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish Painted Aluminum gear pieces 3 Aluminum spider arm finish Anodized Aluminum spider arm pieces 1 Combination names 10-45T 10-51T Combination 10-12-14-16-18-21-24-28-32-36-40-45 10-12-14-16-18-21-24-28-33-39-45-51 Compatible chain HG 12-speed Lock ring finish Anodized Lock ring material Aluminum Micro spline Model CS-M9100-12 Speeds 12 Steel gear finish Plated Steel gear pieces 4 Titanium gear finish Shot Titanium gear pieces 5 Type HYPERGLIDE+ Weights 10-45T: 357g 10-51T: 367g
Rear derailleur	Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g) 240 B axle finish Anodized B axle hollow B axle material Aluminum Bracket body finish Anodized Bracket body material Aluminum Compatible chain HG 12-speed Lower pulley max 51T Lower pulley min 51T Model RD-M9100-SGS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 13T pulley.tension_pulley_bearing Sealed bearing Pulley cage SGS Speeds 12 Upper pulley max 10T Upper pulley min 10T Total capacity 41T

Frameset
Frame	C:62 Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit Boost BB, Integrated Cable Routing, Boost 148, Dropper Post Ready
Front suspension	Fox 32 Float Performance SC

Wheels
Rims	Newmen Evolution SL X.A.25, Tubeless Ready
Tires	Schwalbe Racing Ray, Addix Speedgrip, Kevlar, 2.25, LiteSkin
Rear hub	Shimano FH-MT901-BS, 12mm, Boost, Centerlock
Front hub	Shimano HB-MT901-BS, 15QR, Boost, Centerlock

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

XTR 1 × 12

Crank: 32T

Cassette: 10-51T

Speeds: 12s

Gearing

Average

0,63

Average

3,21

Compared to similar bikes, the CUBE REACTION C:62 ONE 2019 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	15"	17"	19"	21"	23"
a Seat tube length	370,0	420,0	470,0	515,0	565,0
b Seat tube angle	73,5º	73,5º	73,5º	73,5º	73,5º
c Top tube length	571,0	592,0	613,0	632,0	652,0
d Head tube length	100,0	110,0	120,0	130,0	145,0
e Head tube angle	69,0º	69,0º	69,0º	69,0º	69,0º
f Rake	51,0	51,0	51,0	51,0	51,0
g Trail	89,0	89,0	89,0	89,0	89,0
h Wheelbase	1074,0	1095,0	1117,0	1137,0	1158,0
i Chainstay length	427,0	427,0	427,0	427,0	427,0
j Bottom bracket drop	65,0	65,0	65,0	65,0	65,0
k Stack height	613,0	622,0	631,0	641,0	655,0
l Reach	393,0	410,0	429,0	445,0	460,0
m Standover height	-	-	-	-	-
x Bottom bracket height	309,0	309,0	309,0	309,0	309,0
y Front center	655,0	676,0	698,0	718,0	739,0
