CUBE REACTION C:62 SLT 2020

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9,6 kg
Front travel
100mm

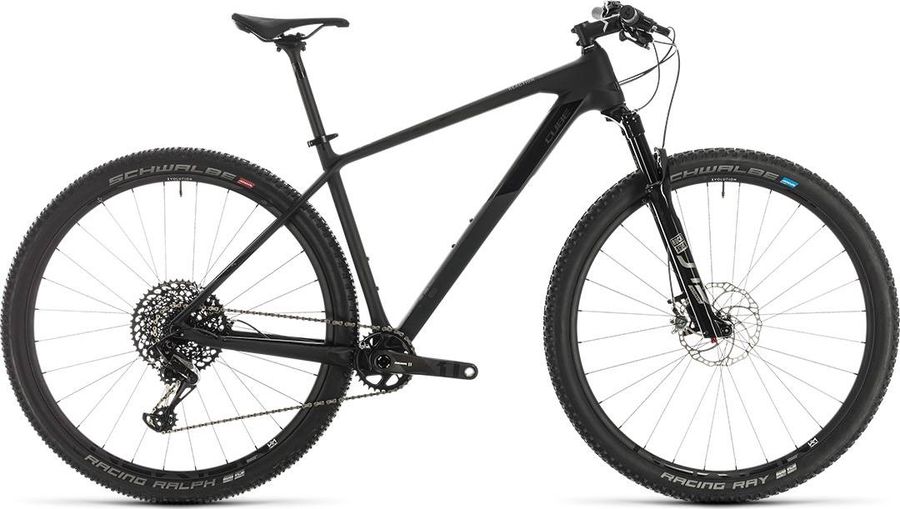

CUBE REACTION C:62 SLT 2020

About the CUBE REACTION C:62 SLT 2020

The CUBE REACTION C:62 SLT 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e tapered head tube. The bike weighs approximately 9,6 kg.

Features

The CUBE REACTION C:62 SLT 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5mm, 1-Clamp
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
Natural Fit Nuance SL
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Newmen Advanced Custom, Carbon, 27.2mm
Handlebar
Newmen Advanced 318.0, Carbon, 740mm
Brakes
Magura MT8
Drivetrain
Crankset
SRAM X1 Eagle™ Carbon, 32T
Shifter
SRAM X01 Eagle™ Trigger
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
C:62, Carbon Technology
Front suspension
RockShox SID Ultimate DebonAir 1582 g
Color
Gloss Black, Gloss Blue
Damper type
Charger 2 RLC
fork offset
42mm (27.5"), 42mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SID-ULT-B4
Name
SID Ultimate
Spring
DebonAir
Travel (mm)
100mm, 120mm
Upper tube type
32mm straight wall aluminum
Weight based on
27.5" BOOST, 100mm, Maxle Stealth
Weight
1582
Wheel size
27.5", 29"
Wheels
Rims
Newmen Evolution SL X.A.25
Tires
Schwalbe Racing Ray, Addix Speedgrip, Kevlar, 2.25, LiteSkin

Geometry

Size 15" 17" 19" 21" 23"
a
Seat tube length
370,0
420,0
470,0
515,0
565,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
571,0
592,0
613,0
632,0
652,0
d
Head tube length
100,0
110,0
120,0
130,0
145,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
51,0
51,0
51,0
51,0
g
Trail
89,0
89,0
89,0
89,0
89,0
h
Wheelbase
1074,1
1095,2
1117,0
1136,9
1157,8
i
Chainstay length
427,0
427,0
427,0
427,0
427,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
65,0
k
Stack height
612,7
622,07
631,41
640,75
654,75
l
Reach
392,77
410,3
428,82
444,84
460,37
m
Standover height
730,0
759,0
795,0
827,0
863,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
y
Front center
655,0
676,0
698,0
718,0
739,0
