CUBE REACTION GTC SL 2017

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29" / 27,5"
Suspension type
Hardtail
Weight
10,55 kg
Front travel
100mm

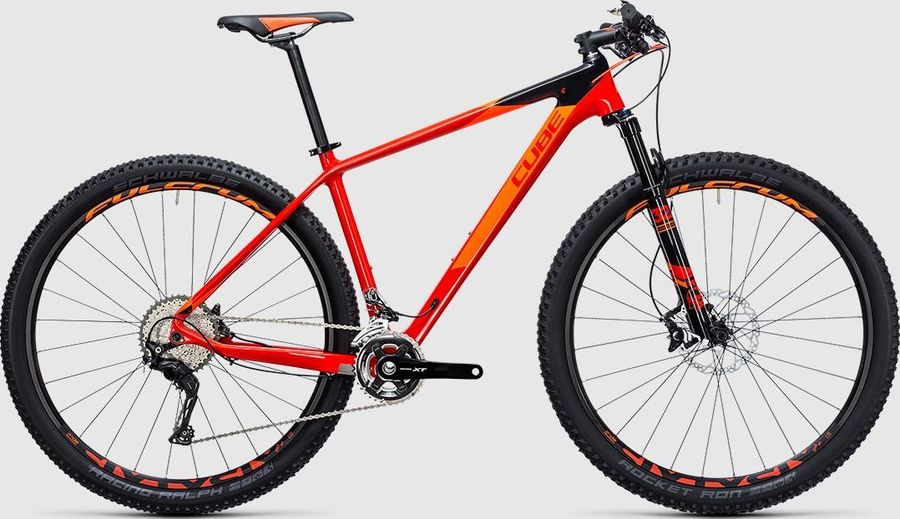

CUBE REACTION GTC SL 2017

About the CUBE REACTION GTC SL 2017

The CUBE REACTION GTC SL 2017 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes, tapered head tube, and remote lockout. The bike weighs approximately 10,55 kg.

Features

The CUBE REACTION GTC SL 2017 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
CUBE Race Grip, 1-Clamp
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Selle Italia SC1
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
CUBE Prolight, 27.2mm
Handlebar
CUBE Flat Race Bar Pro, 720mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano XT FC-M8000, 36x26T, 175mm
Shifter
Shimano XT SL-M8000-I, Direct Attach
Front derailleur
Shimano XT FD-M8020-D, Direct Mount, Side Swing
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
GTC Twin Mold Monocoque Technology, ARG2, Tapered Headtube, PressFit BB, X12, Integrated Cable Routing
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
Fulcrum Red 66, 28/28Spokes, 15QR/X12
Tires
Schwalbe Rocket Ron, Kevlar, 2.25, LiteSkin

Geometry

Size 15" 16" 17" 18" 19" 21" 23"
a
Seat tube length
370,0
405,0
420,0
450,0
470,0
515,0
565,0
b
Seat tube angle
73,0º
73,5º
73,0º
73,5º
73,0º
73,0º
73,0º
c
Top tube length
574,0
574,0
591,5
597,0
613,0
632,0
643,0
d
Head tube length
95,0
95,0
105,0
100,0
115,0
125,0
140,0
e
Head tube angle
69,5º
70,0º
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
51,0
44,0
50,0
44,0
51,0
51,0
50,0
g
Trail
86,0
83,0
83,0
83,0
82,0
82,0
83,0
h
Wheelbase
1077,0
1063,0
1089,0
1086,0
1111,0
1131,0
1142,0
i
Chainstay length
439,0
428,0
439,0
428,0
439,0
439,0
439,0
j
Bottom bracket drop
65,0
51,5
65,0
51,5
65,0
65,0
65,0
k
Stack height
610,0
589,0
622,0
594,0
631,0
641,0
655,0
l
Reach
390,0
401,0
404,0
422,0
422,0
438,0
445,0
m
Standover height
-
-
-
-
-
-
-
x
Bottom bracket height
309,0
304,0
309,0
304,0
309,0
309,0
309,0
y
Front center
646,0
640,0
658,0
663,0
680,0
700,0
711,0
