CUBE REACTION HYBRID HPA Race 500 2017

E-Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
20,5 kg
Front travel
100mm

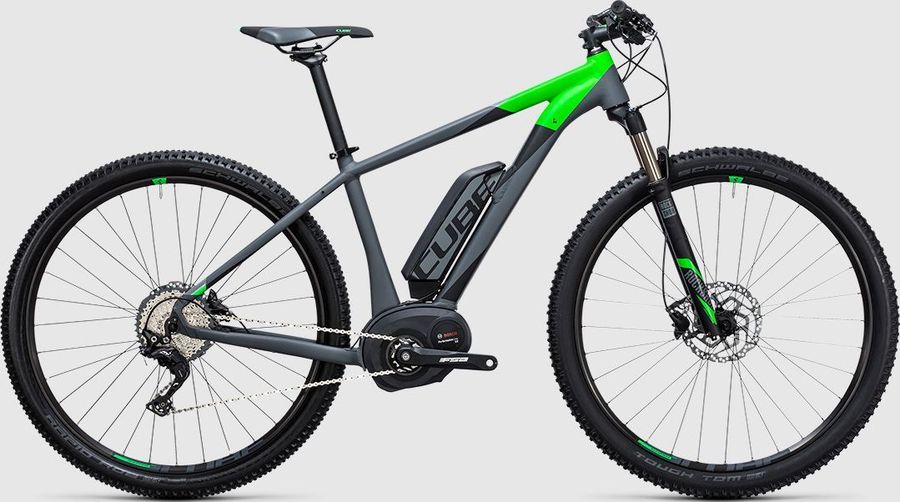

CUBE REACTION HYBRID HPA Race 500 2017

About the CUBE REACTION HYBRID HPA Race 500 2017

The CUBE REACTION HYBRID HPA Race 500 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 20,5 kg.

Features

The CUBE REACTION HYBRID HPA Race 500 2017 has 4 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Performance Grip
Remote
Bosch Purion
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Selle Royal MTB
Battery
Bosch PowerPack 500
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Performance Post, 30.9mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
FSA CK-745, 15T
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter
Shimano SLX SL-M7000
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Aluminium Superlite, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Front suspension
RockShox Recon Silver TK Coil, Solo Air 2166 g
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-RCNS-TK-C1
Name
Recon Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 80mm
Upper tube type
32mm straight wall steel
Weight based on
27.5", Tapered AL steerer, 9mm QR lower leg, Coil
Weight
2166
Wheel size
26", 27.5", 29"
Wheels
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Tough Tom, Active, 2.25
Rear hub
Shimano Deore FH-M615, Centerlock
Front hub
Shimano Deore HB-M615, Centerlock

Geometry

Size 14" 16" 18" 17" 19" 21" 23"
a
Seat tube length
365,0
405,0
450,0
405,0
450,0
495,0
545,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
526,0
555,0
577,0
579,0
599,0
619,0
629,0
d
Head tube length
115,0
110,0
120,0
110,0
115,0
125,0
140,0
e
Head tube angle
69,0º
69,0º
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
45,0
43,0
45,0
52,0
51,0
51,0
50,0
g
Trail
88,0
90,0
82,0
81,0
82,0
82,0
83,0
h
Wheelbase
1068,0
1101,0
1114,0
1130,0
1150,0
1171,0
1181,0
i
Chainstay length
469,0
469,0
469,0
487,0
487,0
487,0
487,0
j
Bottom bracket drop
51,5
51,5
51,5
65,0
65,0
65,0
65,0
k
Stack height
600,0
595,0
609,0
623,0
628,0
637,0
651,0
l
Reach
342,0
379,0
396,0
388,0
407,0
424,0
430,0
m
Standover height
-
-
-
-
-
-
-
x
Bottom bracket height
304,0
304,0
304,0
309,0
309,0
309,0
309,0
y
Front center
604,0
637,0
650,0
651,0
671,0
691,0
701,0
