CUBE REACTION HYBRID HPA SL 500 2017

E-Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
21,5 kg
Front travel
100mm

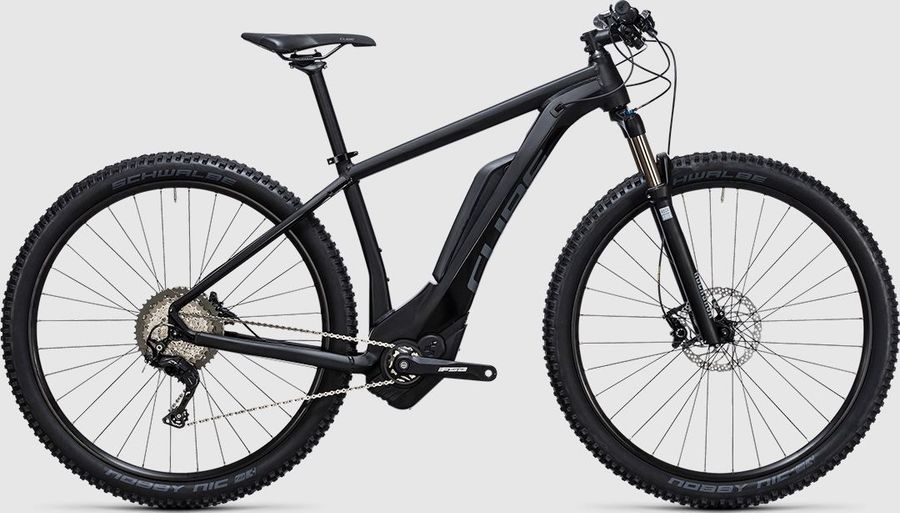

CUBE REACTION HYBRID HPA SL 500 2017

About the CUBE REACTION HYBRID HPA SL 500 2017

The CUBE REACTION HYBRID HPA SL 500 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 21,5 kg.

Features

The CUBE REACTION HYBRID HPA SL 500 2017 has 4 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Performance Grip
Remote
Bosch Purion
Components
Steam
CUBE Performance Pro, 31.8mm
Saddle
Selle Royal MTB
Battery
Bosch PowerPack 500
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Performance Post, 30,9mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Brakes
Shimano Deore BR-M615
Drivetrain
Crankset
FSA CK-745, 16T
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter
Shimano XT SL-M8000-B-I, Direct Attach
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Front suspension
RockShox Recon Silver TK Coil, Solo Air 2166 g
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-RCNS-TK-C1
Name
Recon Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 80mm
Upper tube type
32mm straight wall steel
Weight based on
27.5", Tapered AL steerer, 9mm QR lower leg, Coil
Weight
2166
Wheel size
26", 27.5", 29"
Wheels
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.35
Rear hub
Shimano XT FH-M8000, QR, Centerlock
Front hub
Shimano XT HB-M8000, QR, Centerlock

Geometry

Size 16" 18" 17" 19" 21" 23"
a
Seat tube length
405,0
450,0
405,0
450,0
495,0
545,0
b
Seat tube angle
73,5º
73,5º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
561,0
583,0
585,0
605,0
625,0
635,0
d
Head tube length
105,0
120,0
105,0
110,0
120,0
135,0
e
Head tube angle
69,0º
70,0º
69,5º
70,0º
70,0º
70,0º
f
Rake
36,0
37,0
39,0
39,0
39,0
40,0
g
Trail
98,0
90,0
98,0
95,0
95,0
94,0
h
Wheelbase
1094,0
1105,0
1117,0
1131,0
1151,0
1162,0
i
Chainstay length
468,0
468,0
480,0
480,0
480,0
480,0
j
Bottom bracket drop
48,0
51,5
62,0
65,0
65,0
65,0
k
Stack height
597,0
619,0
628,0
638,0
647,0
661,0
l
Reach
386,0
401,0
395,0
412,0
429,0
434,0
m
Standover height
-
-
-
-
-
-
x
Bottom bracket height
307,0
304,0
312,0
309,0
309,0
309,0
y
Front center
630,0
642,0
644,0
659,0
679,0
690,0
