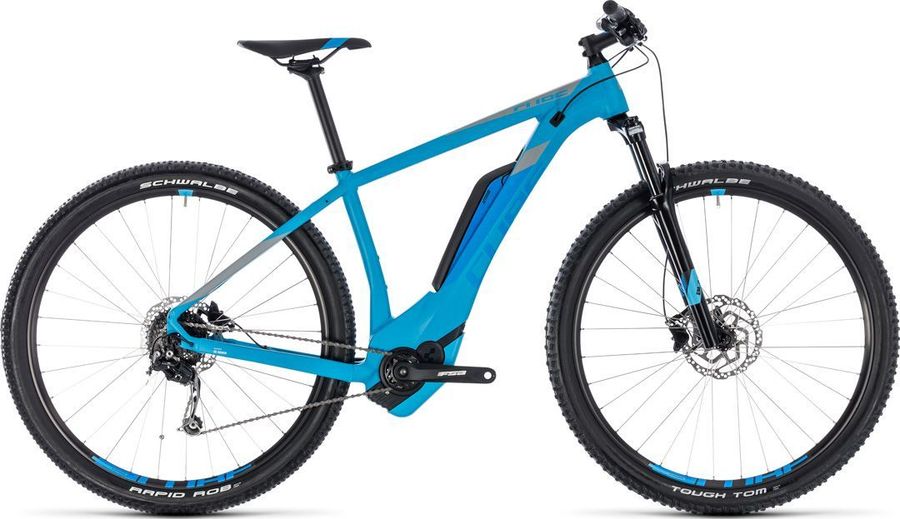

CUBE REACTION HYBRID ONE 400 29 2018
The CUBE REACTION HYBRID ONE 400 29 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
22,5 kg
Front travel
100mm
About the CUBE REACTION HYBRID ONE 400 29 2018
The CUBE REACTION HYBRID ONE 400 29 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 9 gears (1x9). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 22,5 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
CUBE Performance Grip
|
|---|---|
|
Remote
|
Bosch Purion
|
|
Steam
|
CUBE Performance Stem Pro, 31.8mm
|
|---|---|
|
Saddle
|
Selle Royal MTB
|
|
Battery
|
Bosch PowerPack 400
|
|
Headset
|
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
|
|
Seatpost
|
CUBE Performance Post, 30.9mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 680mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
FSA CK-745, 170mm, 15T
|
|---|---|
|
Motor
|
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
|
|
Shifter
|
Shimano SL-M3000
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Deore RD-M592
SGS
9s
|
|
|
|
|
Chain
|
KMC X9
|
|
Frame
|
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
|
|---|---|
|
Front suspension
|
RST Blaze 29"
|
|
Rims
|
CUBE ZX20, 32H, Disc
|
|---|---|
|
Tires
|
Schwalbe Tough Tom, Active, 2.25
|
|
Rear hub
|
Shimano FH-TX505, QR, Centerlock
|
|
Front hub
|
Shimano HB-TX505, QR, Centerlock
|
Geometry
| Size | 21" | 17" | 19" | 23" |
|---|---|---|---|---|
|
a
Seat tube length
|
495,0
|
405,0
|
450,0
|
545,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
625,0
|
585,0
|
605,0
|
635,0
|
|
d
Head tube length
|
120,0
|
105,0
|
110,0
|
135,0
|
|
e
Head tube angle
|
70,0º
|
69,5º
|
70,0º
|
70,0º
|
|
f
Rake
|
39,0
|
39,0
|
39,0
|
40,0
|
|
g
Trail
|
95,0
|
98,0
|
95,0
|
94,0
|
|
h
Wheelbase
|
1151,0
|
1117,0
|
1131,0
|
1162,0
|
|
i
Chainstay length
|
480,0
|
480,0
|
480,0
|
480,0
|
|
j
Bottom bracket drop
|
65,0
|
62,0
|
65,0
|
65,0
|
|
k
Stack height
|
647,0
|
628,0
|
638,0
|
661,0
|
|
l
Reach
|
429,0
|
395,0
|
412,0
|
434,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
309,0
|
312,0
|
309,0
|
309,0
|
|
y
Front center
|
679,0
|
644,0
|
659,0
|
690,0
|
