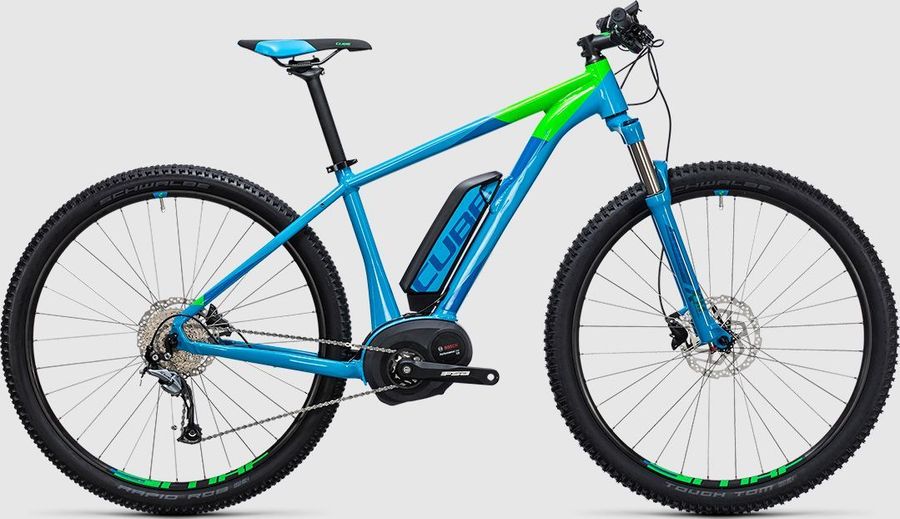

CUBE REACTION HYBRID ONE 500 2017
The CUBE REACTION HYBRID ONE 500 2017 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
21,1 kg
Front travel
100mm
About the CUBE REACTION HYBRID ONE 500 2017
The CUBE REACTION HYBRID ONE 500 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 9 gears (1x9). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 21,1 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
CUBE Performance Grip
|
|---|---|
|
Remote
|
Bosch Intuvia
|
|
Steam
|
CUBE Performance Stem Pro, 31.8mm
|
|---|---|
|
Saddle
|
Selle Royal MTB
|
|
Battery
|
Bosch PowerPack 500
|
|
Headset
|
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
|
|
Seatpost
|
CUBE Performance Post, 30.9mm
|
|
Handlebar
|
CUBE Rise Trail Bar, 660mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
FSA CK-745, 15T
|
|---|---|
|
Motor
|
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
|
|
Shifter
|
Shimano SL-M370, Rapidfire-Plus
|
|
Rear derailleur
|
Shimano Acera RD-M3000
|
|
Cassette
|
Shimano CS-HG300
|
|
Chain
|
KMC X9
|
|
Frame
|
Aluminium Superlite, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
|
|---|---|
|
Front suspension
|
SR Suntour XCM 32
|
|
Rims
|
CUBE ZX20, 32H, Disc
|
|---|---|
|
Tires
|
Schwalbe Tough Tom, Active, 2.25
|
|
Rear hub
|
Shimano FH-TX505, QR
|
|
Front hub
|
Shimano HB-TX505, QR
|
Geometry
| Size | 14" | 16" | 18" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
365,0
|
405,0
|
450,0
|
405,0
|
450,0
|
495,0
|
545,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
526,0
|
555,0
|
577,0
|
579,0
|
599,0
|
619,0
|
629,0
|
|
d
Head tube length
|
115,0
|
110,0
|
120,0
|
110,0
|
115,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
45,0
|
43,0
|
45,0
|
52,0
|
51,0
|
51,0
|
50,0
|
|
g
Trail
|
88,0
|
90,0
|
82,0
|
81,0
|
82,0
|
82,0
|
83,0
|
|
h
Wheelbase
|
1068,0
|
1101,0
|
1114,0
|
1130,0
|
1150,0
|
1171,0
|
1181,0
|
|
i
Chainstay length
|
469,0
|
469,0
|
469,0
|
487,0
|
487,0
|
487,0
|
487,0
|
|
j
Bottom bracket drop
|
51,5
|
51,5
|
51,5
|
65,0
|
65,0
|
65,0
|
65,0
|
|
k
Stack height
|
600,0
|
595,0
|
609,0
|
623,0
|
628,0
|
637,0
|
651,0
|
|
l
Reach
|
342,0
|
379,0
|
396,0
|
388,0
|
407,0
|
424,0
|
430,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
304,0
|
309,0
|
309,0
|
309,0
|
309,0
|
|
y
Front center
|
604,0
|
637,0
|
650,0
|
651,0
|
671,0
|
691,0
|
701,0
|
