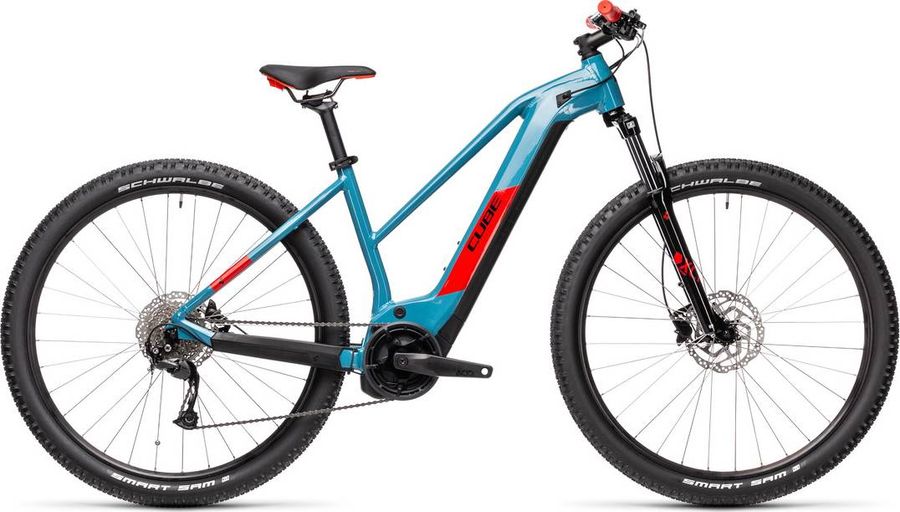

CUBE REACTION HYBRID PERFORMANCE 400 Trapeze 2021

E-Bike
MTB Cross Country
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
23,1 kg
Front travel
100mm
CUBE REACTION HYBRID PERFORMANCE 400 Trapeze 2021

About the CUBE REACTION HYBRID PERFORMANCE 400 Trapeze 2021

The CUBE REACTION HYBRID PERFORMANCE 400 Trapeze 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 9 gears (1x9). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 23,1 kg.

Features

The CUBE REACTION HYBRID PERFORMANCE 400 Trapeze 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Performance Grip
Pedals
CUBE PP MTB
Remote
Purion
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Natural Fit Sequence
Battery
PowerTube 400
Charger
2A
Headset
27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seatpost
CUBE Performance Post, 30.9mm
Handlebar
CUBE Rise Trail Bar, 720mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
ACID E-Crank, 38T
Motor
Bosch Drive Unit Performance GEN3 (65Nm)
Shifter
Shimano SL-M3100-R, Rapidfire-Plus
Cassette
Shimano Altus CS-HG201-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG201-9
Steel gear finish
Ni-Ni plated (Top gear: Phosphate coated)
Steel gear pieces
9
Type
HG
Chain
KMC X9
Rear derailleur
Shimano Alivio RD-M3100 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
CN-HG53 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M3100-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
HPA, High Performance Aluminium
Front suspension
SR Suntour XCM ATB
Wheels
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, K-Guard, 2.35
Rear hub
Shimano FH-TX505, QR, Centerlock
Front hub
Shimano HB-TX505, QR, Centerlock

Geometry

Size 15" 17" 19"
a
Seat tube length
370,0
405,0
450,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
564,0
584,0
604,0
d
Head tube length
120,0
115,0
120,0
e
Head tube angle
68,0º
68,0º
69,0º
f
Rake
42,0
51,0
51,0
g
Trail
106,0
96,0
89,0
h
Wheelbase
1132,0
1171,0
1180,0
i
Chainstay length
476,0
492,0
492,0
j
Bottom bracket drop
48,0
65,0
65,0
k
Stack height
606,0
632,0
642,0
l
Reach
393,0
405,0
422,0
m
Standover height
686,0
703,0
711,0
x
Bottom bracket height
326,0
309,0
309,0
y
Front center
660,0
686,0
695,0
