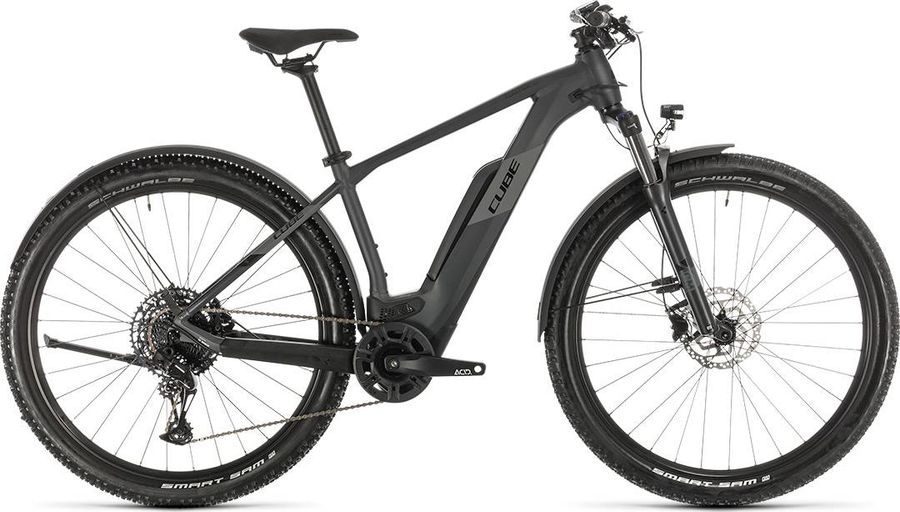

CUBE REACTION HYBRID PRO 500 ALLROAD 2020

E-Bike
MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
24,3 kg
Front travel
100mm
CUBE REACTION HYBRID PRO 500 ALLROAD 2020

About the CUBE REACTION HYBRID PRO 500 ALLROAD 2020

The CUBE REACTION HYBRID PRO 500 ALLROAD 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 24,3 kg.

Features

The CUBE REACTION HYBRID PRO 500 ALLROAD 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Performance Grip
Pedals
CUBE PP MTB
Remote
Purion
Components
Steam
CUBE Performance Stem, 31.8mm
Saddle
Natural Fit Sequence
Battery
PowerPack 500
Charger
2A
Headset
FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Performance Post, 30.9mm
Handlebar
CUBE Rise Trail Bar, 700mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
ACID E-Crank, 38T
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Shifter
SRAM SX Eagle™ Trigger, Single Click
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
HPA, High Performance Aluminium
Front suspension
SR Suntour XCM 34
Wheels
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Rear hub
Shimano FH-TX505, QR, Centerlock
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock

Geometry

Size 13.5" 15" 17" 19" 21" 23"
a
Seat tube length
355,0
370,0
405,0
450,0
495,0
545,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
551,0
566,0
586,0
606,0
626,0
646,0
d
Head tube length
110,0
120,0
110,0
120,0
131,0
146,0
e
Head tube angle
68,0º
68,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
44,0
44,0
52,0
50,0
50,0
51,0
g
Trail
96,0
96,0
88,0
90,0
90,0
89,0
h
Wheelbase
1091,0
1109,0
1135,0
1155,0
1176,0
1197,0
i
Chainstay length
447,0
447,0
466,0
466,0
466,0
466,0
j
Bottom bracket drop
46,5
46,5
65,0
65,0
65,0
65,0
k
Stack height
597,0
606,0
634,0
644,0
654,0
668,0
l
Reach
385,0
399,0
408,0
426,0
443,0
458,0
m
Standover height
723,0
734,0
771,0
804,0
838,0
876,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
309,0
y
Front center
648,0
666,0
677,0
697,0
718,0
738,0
