CUBE REACTION HYBRID SL 500 KIOX 2019

E-Bike
MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
22,8 kg
Front travel
100mm
CUBE REACTION HYBRID SL 500 KIOX 2019

About the CUBE REACTION HYBRID SL 500 KIOX 2019

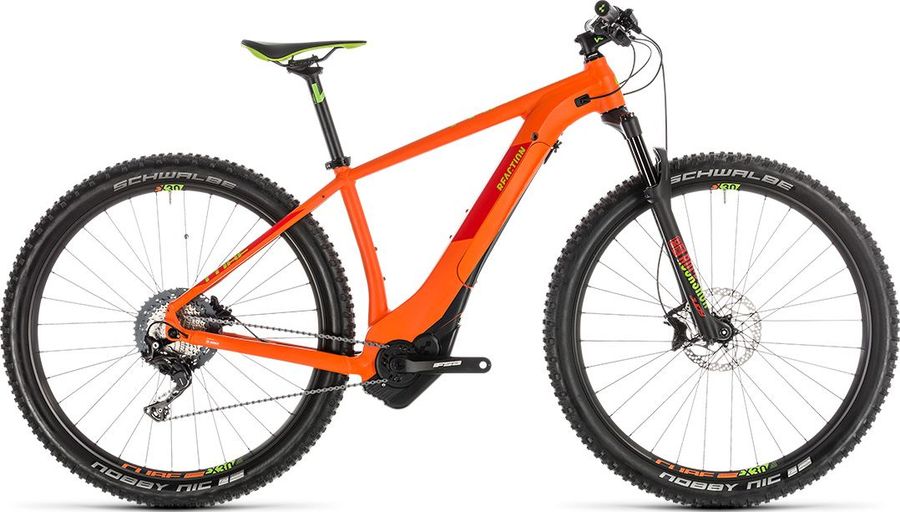

The CUBE REACTION HYBRID SL 500 KIOX 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 22,8 kg.

Features

The CUBE REACTION HYBRID SL 500 KIOX 2019 has 6 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip 31mm, 1-Clamp
Pedals
CUBE PP MTB
Remote
Bosch Kiox
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
Natural Fit Active Race
Battery
Bosch PowerTube 500
Charger
Bosch 2A
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
Newmen Evolution, 30.9mm
Handlebar
Newmen Evolution 318.10, 720mm
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
FSA CK-745, 15T, 175mm
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter
Shimano SLX SL-M7000-I, Direct Attach
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Boost 148, Internal Cable Routing, Full Integrated Battery
Front suspension
RockShox Judy Gold Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
58, 62, 81
Maximum rotor size
185mm, 210mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A3
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
26", 27.5", 29"
Wheels
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.60
Rear hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Front hub
Shimano HB-MT400-B, 15QR, Boost, Centerlock

Geometry

Size 16" 18" 17" 19" 21" 23"
a
Seat tube length
405,0
450,0
405,0
450,0
495,0
545,0
b
Seat tube angle
73,5º
73,5º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
561,0
583,0
585,0
605,0
625,0
635,0
d
Head tube length
105,0
120,0
105,0
110,0
120,0
135,0
e
Head tube angle
69,0º
70,0º
69,5º
70,0º
70,0º
70,0º
f
Rake
36,0
37,0
39,0
39,0
39,0
40,0
g
Trail
98,0
90,0
98,0
95,0
95,0
94,0
h
Wheelbase
1094,0
1105,0
1117,0
1131,0
1151,0
1162,0
i
Chainstay length
468,0
468,0
480,0
480,0
480,0
480,0
j
Bottom bracket drop
48,0
51,5
62,0
65,0
65,0
65,0
k
Stack height
597,0
619,0
628,0
638,0
647,0
661,0
l
Reach
386,0
401,0
395,0
412,0
429,0
434,0
m
Standover height
-
-
-
-
-
-
x
Bottom bracket height
307,0
304,0
312,0
309,0
309,0
309,0
y
Front center
630,0
642,0
644,0
659,0
679,0
690,0
