CUBE REACTION HYBRID SLT 625 29 Trapeze 2021

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
23,4 kg
Front travel
120mm

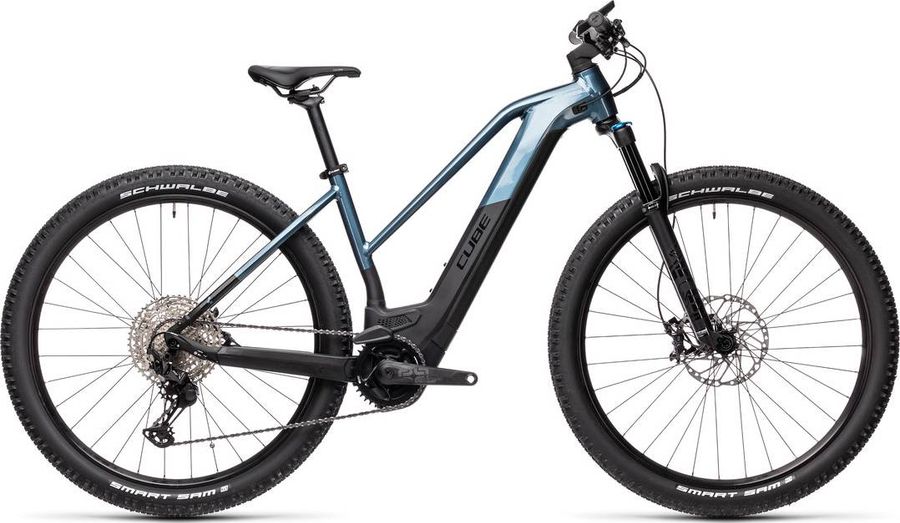

CUBE REACTION HYBRID SLT 625 29 Trapeze 2021

About the CUBE REACTION HYBRID SLT 625 29 Trapeze 2021

The CUBE REACTION HYBRID SLT 625 29 Trapeze 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes e tubeless ready. The bike weighs approximately 23,4 kg.

Features

The CUBE REACTION HYBRID SLT 625 29 Trapeze 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip 31mm, 1-Clamp
Pedals
CUBE PP MTB
Remote
Nyon
Components
Steam
CUBE Performance Stem E-MTB, 31.8mm
Saddle
Natural Fit Sequence+
Battery
PowerTube 625
Charger
4A
Headset
ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seatpost
CUBE Performance Post, 30.9mm
Handlebar
Newmen Evolution 318.10, 720mm
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
e*thirteen Plus Crank, 38T
Motor
Bosch Drive Unit Performance CX GEN4 (85Nm)
Shifter
Shimano XT SL-M8100-IR, Direct Attach
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
HPA, High Performance Aluminium
Front suspension
Fox 34 Rhythm
Wheels
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Rear hub
Shimano FH-MT510-B, 12mm, Boost, Centerlock
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock

Geometry

Size 15" 17" 19"
a
Seat tube length
375,0
405,0
450,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
572,0
577,0
597,0
d
Head tube length
100,0
105,0
110,0
e
Head tube angle
67,5º
68,0º
68,0º
f
Rake
50,0
51,0
51,0
g
Trail
101,0
96,0
96,0
h
Wheelbase
1138,0
1138,0
1158,0
i
Chainstay length
452,0
452,0
452,0
j
Bottom bracket drop
65,0
65,0
65,0
k
Stack height
620,0
627,0
631,0
l
Reach
395,0
397,0
416,0
m
Standover height
692,0
694,0
699,0
x
Bottom bracket height
309,0
309,0
309,0
y
Front center
694,0
694,0
714,0
