CUBE REACTION SL 2019

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
12,7 kg
Front travel
100mm

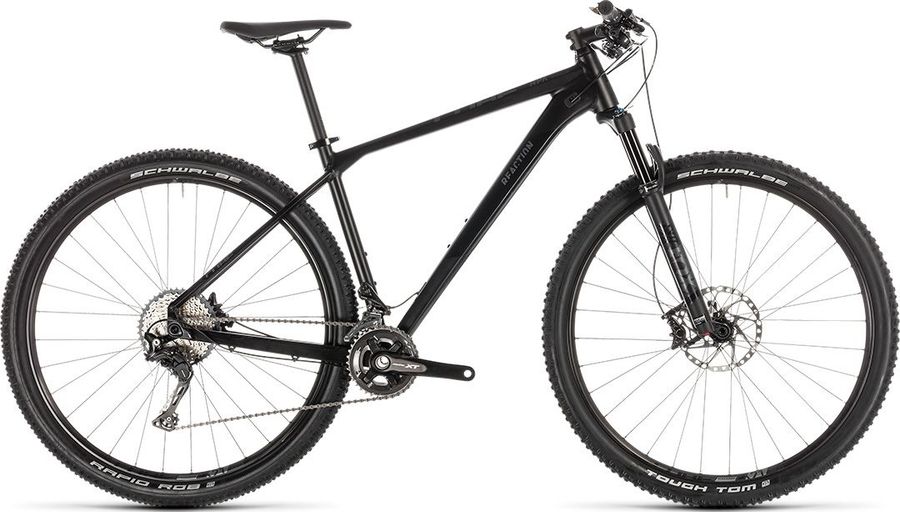

CUBE REACTION SL 2019

About the CUBE REACTION SL 2019

The CUBE REACTION SL 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include internal routing, boost 110 , and hydraulic disc brakes. The bike weighs approximately 12,7 kg.

Features

The CUBE REACTION SL 2019 has 6 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Performance Grip
Pedals
CUBE PP MTB
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Natural Fit Active
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
CUBE Performance Post, 27.2mm
Handlebar
CUBE Flat Race Bar, 720mm
Brake lever
Shimano XT BR-M8000
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano XT FC-M8000-B2, Boost, 36x26T, 175mm
Shifter
Shimano XT SL-M8000-I, Direct Attach
Bottom bracket
Press-fit
Front derailleur
Shimano XT FD-M8020-D, Side Swing
Chain
Shimano CN-HG600
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Aluminium Lite, AMF, ARG, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, PressFit BB
Front suspension
Fox 32 Rhythm
Wheels
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Tough Tom, Active, 2.25
Rear hub
Shimano XT FH-M8000, Through Axle, Boost, Centerlock
Front hub
Shimano XT HB-M8000, 15QR, Boost, Centerlock

Geometry

Size 15" 17" 19" 21" 23"
a
Seat tube length
370,0
420,0
470,0
515,0
565,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
562,0
584,0
604,0
624,0
644,0
d
Head tube length
103,0
109,0
120,0
130,0
145,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
36,0
51,0
52,0
51,0
51,0
g
Trail
98,0
89,0
88,0
89,0
89,0
h
Wheelbase
1051,0
1088,0
1109,0
1129,0
1150,0
i
Chainstay length
414,0
427,0
427,0
427,0
427,0
j
Bottom bracket drop
51,5
65,0
65,0
65,0
65,0
k
Stack height
614,0
621,0
631,0
640,0
654,0
l
Reach
391,0
404,0
420,0
437,0
453,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
304,0
309,0
309,0
309,0
309,0
y
Front center
642,0
669,0
690,0
710,0
731,0
