BikeWise

CUBE REACTION TM 2018

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,1 kg
Front travel
130mm

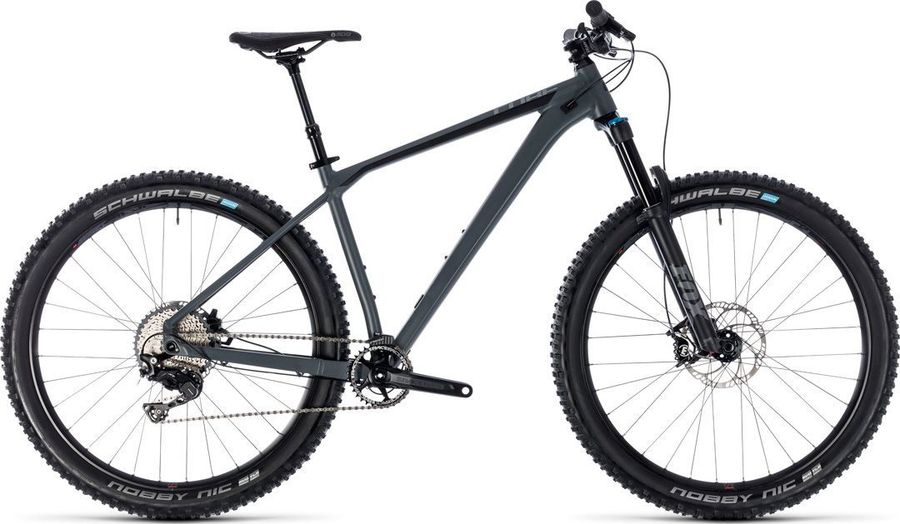

CUBE REACTION TM 2018

About the CUBE REACTION TM 2018

The CUBE REACTION TM 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 13,1 kg.

Features

The CUBE REACTION TM 2018 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5, 1-Clamp
Pedals
CUBE Aluminium MTB
Components
Steam
Race Face Aeffect R 35
Saddle
SDG Fly Mtn 2
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 27.2mm, 400x105mm
Handlebar
Race Face Aeffect 35, 760mm
Brakes
Magura MT Trail Custom
Drivetrain
Crankset
Race Face Aeffect SL 32T, 175mm
Shifter
Shimano SLX SL-M7000
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Aluminium Lite, Trail Motion Geometry, AMF, ARG, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, Press Fit BB, Fits up to 2.8 27.5" Tires
Front suspension
Fox 34 Rhythm
Wheels
Rims
Rodi Blackjack Typ 35, 32H, Disc
Tires
Schwalbe Nobby Nic, Addix Speedgrip, Kevlar, Tubeless Easy, 2.6
Rear hub
CUBE Alloy Light
Front hub
CUBE Alloy Light

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
405,0
450,0
490,0
540,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
581,0
602,0
626,0
651,0
d
Head tube length
100,0
105,0
117,0
133,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
52,0
51,0
g
Trail
95,0
95,0
94,0
95,0
h
Wheelbase
1115,0
1137,0
1162,0
1188,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
k
Stack height
624,0
628,0
639,0
654,0
l
Reach
400,0
420,0
440,0
460,0
m
Standover height
-
-
-
-
x
Bottom bracket height
294,0
294,0
294,0
294,0
y
Front center
690,0
712,0
737,0
763,0
