BikeWise

CUBE REACTION TM 2019

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,4 kg
Front travel
130mm

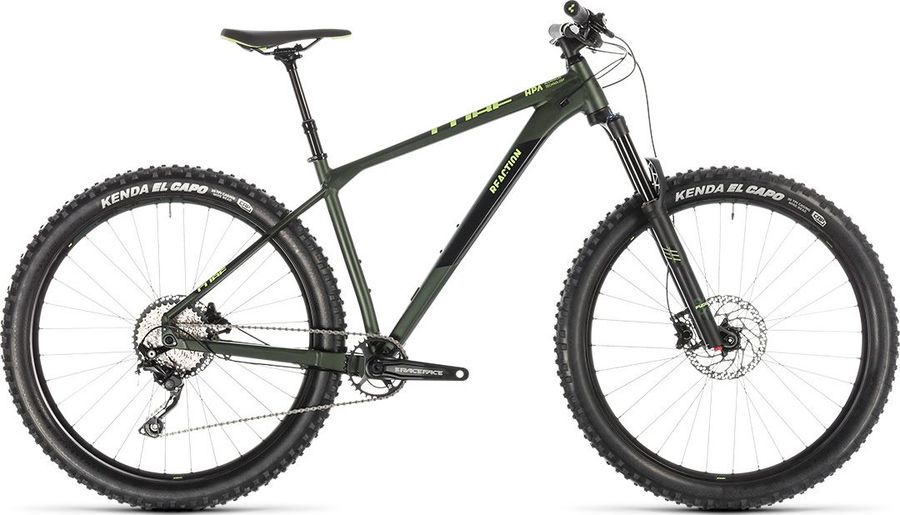

CUBE REACTION TM 2019

About the CUBE REACTION TM 2019

The CUBE REACTION TM 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 14,4 kg.

Features

The CUBE REACTION TM 2019 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip 31mm, 1-Clamp
Pedals
CUBE PP MTB
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
Natural Fit Active
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 27.2mm, 400x105mm
Handlebar
Newmen Evolution 318.20, 760mm
Brake lever
Shimano BR-MT400
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Ride Cinch, 32T, 170mm
Shifter
Shimano Deore SL-M6000, Rapidfire-Plus
Bottom bracket
Press-fit
Front derailleur
Direct mount (none included)
Chain
KMC X10
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Aluminium Lite, Trail Motion Geometry, AMF, ARG, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, Press Fit BB, Fits up to 2.8 27.5" Tires
Front suspension
X-Fusion RC32
Wheels
Rims
Rodi TRYP 35, 32H, Disc, Tubeless ready
Tires
Kenda El Capo, 2.6
Rear hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Front hub
Shimano HB-MT400-B, 15QR, Boost, Centerlock

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
405,0
450,0
490,0
540,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
581,0
602,0
626,0
651,0
d
Head tube length
100,0
105,0
117,0
133,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
52,0
51,0
g
Trail
95,0
95,0
94,0
95,0
h
Wheelbase
1115,0
1137,0
1162,0
1188,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
k
Stack height
624,0
628,0
639,0
654,0
l
Reach
400,0
420,0
440,0
460,0
m
Standover height
-
-
-
-
x
Bottom bracket height
294,0
294,0
294,0
294,0
y
Front center
690,0
712,0
737,0
763,0
