Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,9 kg
Front travel
130mm
About the CUBE REACTION TM 2020

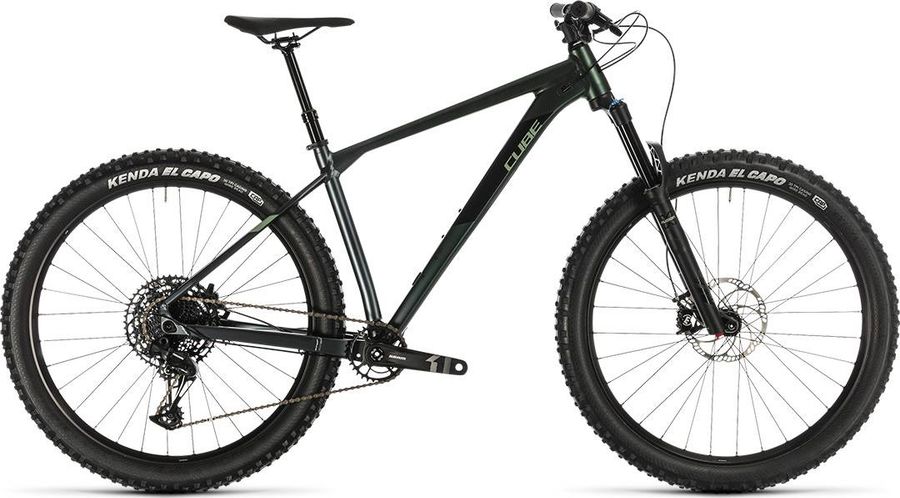

The CUBE REACTION TM 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,9 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
CUBE Race Grip 31mm, 1-Clamp
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Steam
|
Newmen Evolution 318.4, 31.8mm
|
|---|---|
|
Saddle
|
Natural Fit Venec Lite
|
|
Headset
|
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
|
|
Seatpost
|
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm,16" 403x120mm, 18" & 20" 425x130mm, 22" 480x150mm
|
|
Handlebar
|
Newmen Evolution 318.20, 760mm
|
|
Brakes
|
Magura MT Thirty
|
|
Crankset
|
SRAM X1 1000 Eagle™, 30T
|
|---|---|
|
Shifter
|
SRAM SX Eagle™ Trigger
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
HPA, High Performance Aluminium
|
|---|---|
|
Front suspension
|
X-Fusion RC32
|
|
Rims
|
Rodi TRYP 35, 32H, Disc, Tubeless ready
|
|---|---|
|
Tires
|
Kenda El Capo, 2.6
|
|
Rear hub
|
Shimano FH-MT400-B, 12mm, Boost, Centerlock
|
|
Front hub
|
Shimano HB-MT400-B, 15mm, Boost, Centerlock
|
Geometry
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
|
a
Seat tube length
|
405,0
|
450,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
556,0
|
573,0
|
596,0
|
623,0
|
|
d
Head tube length
|
101,5
|
106,5
|
118,5
|
134,5
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
54,0
|
53,0
|
54,0
|
54,0
|
|
g
Trail
|
92,0
|
93,0
|
92,0
|
92,0
|
|
h
Wheelbase
|
1120,0
|
1141,0
|
1166,0
|
1193,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
60,5
|
60,5
|
60,5
|
60,5
|
|
k
Stack height
|
627,0
|
632,0
|
643,0
|
658,0
|
|
l
Reach
|
400,0
|
420,0
|
440,0
|
460,0
|
|
m
Standover height
|
760,0
|
790,0
|
819,0
|
855,0
|
|
x
Bottom bracket height
|
295,0
|
295,0
|
295,0
|
295,0
|
|
y
Front center
|
695,0
|
716,0
|
741,0
|
768,0
|
