CUBE REACTION TM 2022

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,7 kg
Front travel
130mm

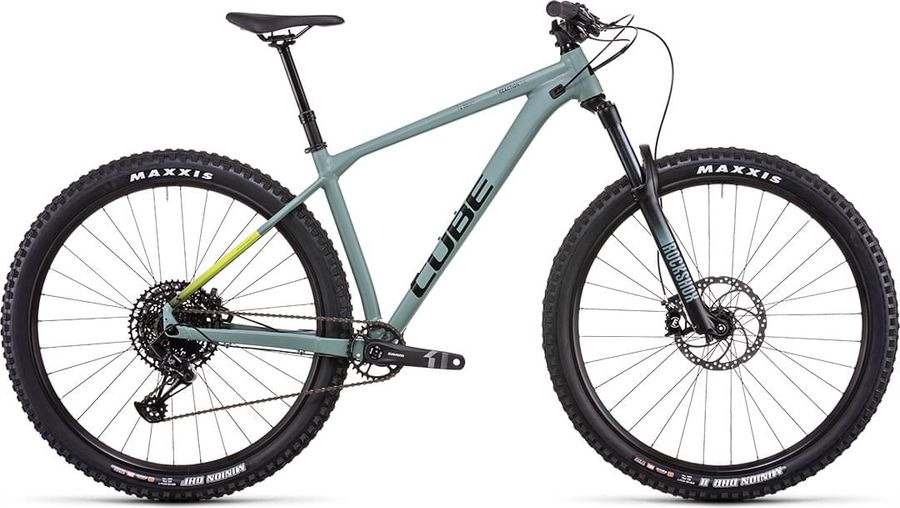

CUBE REACTION TM 2022

About the CUBE REACTION TM 2022

The CUBE REACTION TM 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 14,7 kg.

Features

The CUBE REACTION TM 2022 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ACID React Pro
Pedals
CUBE PP MTB
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
Natural Fit Venec Lite
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm (S: 120mm, M, L, XL: 130mm)
Handlebar
Newmen Evolution 318.20, 760mm
Brakes
Magura MT Thirty
Drivetrain
Crankset
SRAM X1 1000 Eagle™ DUB 30T, Boost, 170mm
Shifter
SRAM SX Eagle™ Trigger
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
Aluminium Lite, Trail Motion Geometry, AMF, ARG, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, Press Fit BB, Fits up to 2.8" 27.5+ Tires
Front suspension
RockShox 35 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35S-TK-A1
Name
35 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Maxxis Minion DHF, MaxxTerra/EXO+, Tubeless Ready, 2.5 WT
Rear hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
405,0
450,0
490,0
540,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
581,0
603,0
626,0
651,0
d
Head tube length
101,5
106,5
118,5
134,5
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
54,0
53,0
54,0
54,0
g
Trail
100,0
101,0
100,0
100,0
h
Wheelbase
1120,0
1141,0
1166,0
1193,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
60,5
60,5
60,5
60,5
k
Stack height
627,0
632,0
643,0
658,0
l
Reach
400,0
420,0
440,0
460,0
m
Standover height
760,0
790,0
819,0
855,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
695,0
716,0
741,0
768,0
