Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
13,6 kg
Front travel
130mm

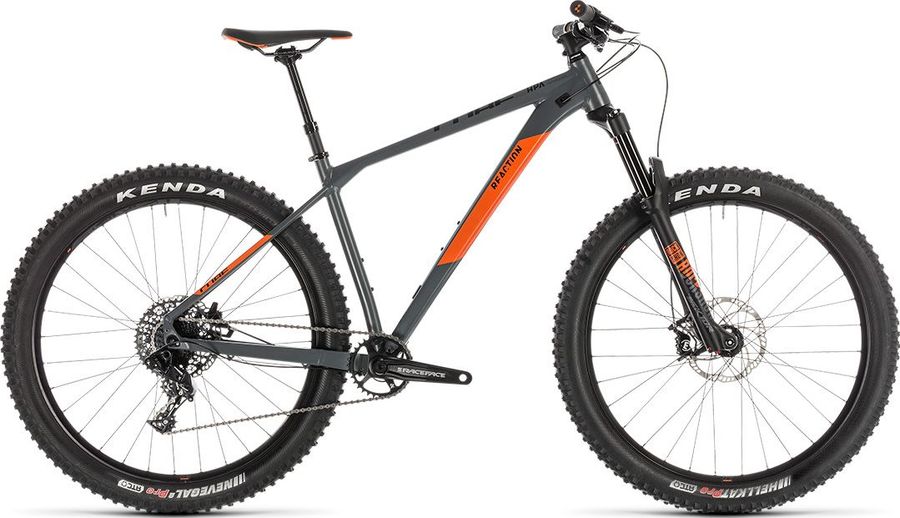

About the CUBE REACTION TM Pro 2019
The CUBE REACTION TM Pro 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 13,6 kg.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
CUBE Race Grip 31mm, 1-Clamp
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Steam
|
Newmen Evolution 318.4, 31.8mm
|
|---|---|
|
Saddle
|
Natural Fit Active
|
|
Headset
|
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
|
|
Seatpost
|
Kind Shock LEV SI, Handlebar Lever, 27.2mm, 120mm
|
|
Handlebar
|
Newmen Evolution 318.20, 760mm
|
|
Brake lever
|
Magura MT Thirty
|
|
Brakes
|
Magura MT Thirty
|
|
Chain
|
SRAM 11-Speed
|
|---|---|
|
Crankset
|
Race Face Ride Cinch, 32T, 170mm
|
|
Shifter
|
SRAM NX Trigger
|
|
Bottom bracket
|
Press-fit
|
|
Front derailleur
|
Direct mount (none included)
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Frame
|
Aluminium Lite, Trail Motion Geometry, AMF, ARG, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, Press Fit BB, Fits up to 2.8 27.5" Tires
|
|---|---|
|
Front suspension
|
RockShox Sektor
|
|
Rims
|
Rodi TRYP 35, 32H, Disc, Tubeless ready
|
|---|---|
|
Tires
|
Kenda Hellkat ATC, 2.6
|
|
Rear hub
|
CUBE MZ5R
|
|
Front hub
|
CUBE DHF112
|
Geometry
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
|
a
Seat tube length
|
405,0
|
450,0
|
490,0
|
540,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
581,0
|
602,0
|
626,0
|
651,0
|
|
d
Head tube length
|
100,0
|
105,0
|
117,0
|
133,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
51,0
|
51,0
|
52,0
|
51,0
|
|
g
Trail
|
95,0
|
95,0
|
94,0
|
95,0
|
|
h
Wheelbase
|
1115,0
|
1137,0
|
1162,0
|
1188,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
61,0
|
61,0
|
61,0
|
61,0
|
|
k
Stack height
|
624,0
|
628,0
|
639,0
|
654,0
|
|
l
Reach
|
400,0
|
420,0
|
440,0
|
460,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
294,0
|
294,0
|
294,0
|
294,0
|
|
y
Front center
|
690,0
|
712,0
|
737,0
|
763,0
|
