CUBE STEREO 120 HPC TM 29 2021

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,4 kg
Front travel
130mm
Rear travel
120mm

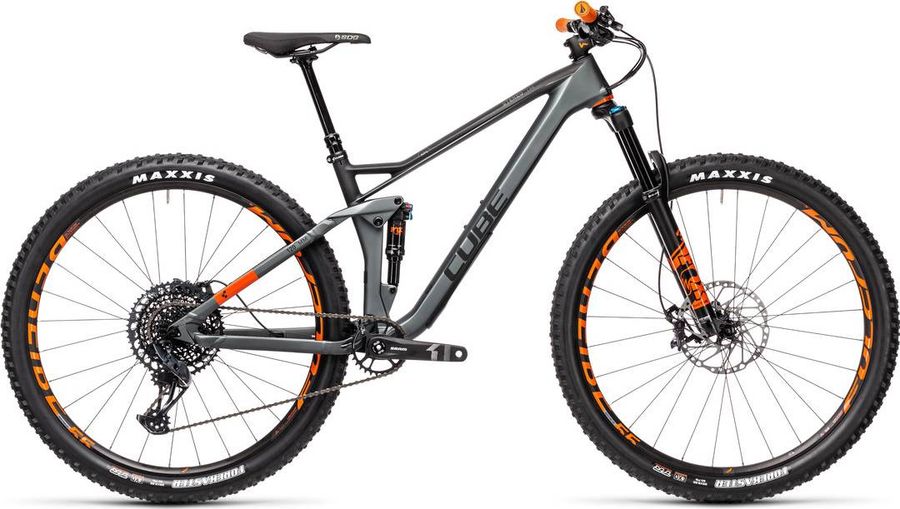

CUBE STEREO 120 HPC TM 29 2021

About the CUBE STEREO 120 HPC TM 29 2021

The CUBE STEREO 120 HPC TM 29 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,4 kg.

Features

The CUBE STEREO 120 HPC TM 29 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
SDG Thrice
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
SDG Radar
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 150mm (125mm for size S)
Handlebar
Newmen Evolution SL 318.25, 780mm
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
SRAM X1 1000 Eagle™, 30T
Shifter
SRAM NX Eagle™ Trigger
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM SX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
HPC, High Performance Composite
Rear suspension
Fox Float DPS
Front suspension
Fox 34 Float Rhythm
Wheels
Rims
Fulcrum Red 55 EM
Tires
Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.35

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
75,3º
75,3º
75,3º
75,3º
c
Top tube length
574,0
595,0
618,0
644,0
d
Head tube length
102,0
105,0
115,0
135,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
104,0
104,0
104,0
104,0
h
Wheelbase
1152,2
1173,4
1197,3
1225,1
i
Chainstay length
439,5
439,5
439,5
439,5
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
607,4
610,2
619,4
637,8
l
Reach
424,0
444,0
464,0
484,0
m
Standover height
745,0
744,0
751,0
779,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
716,0
737,0
761,0
788,0
