BikeWise

CUBE STEREO 120 Pro 29 2019

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,5 kg
Front travel
130mm
Rear travel
120mm

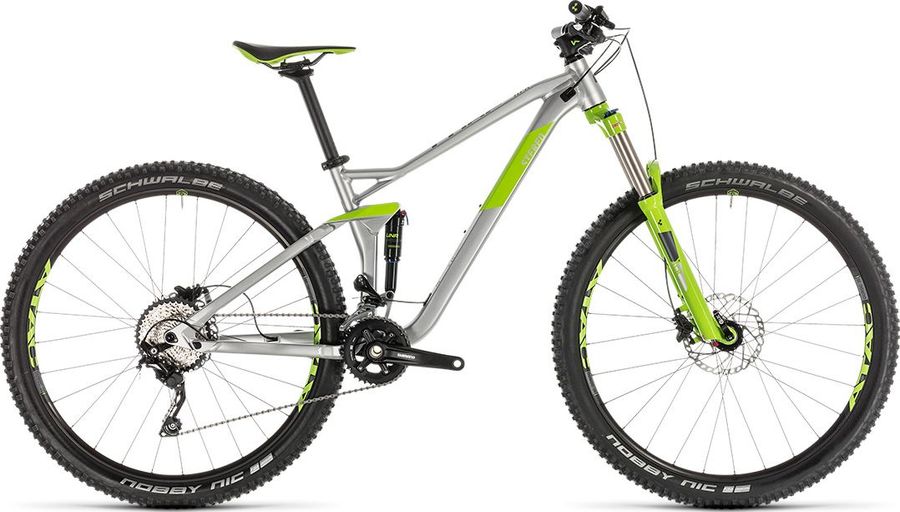

CUBE STEREO 120 Pro 29 2019

About the CUBE STEREO 120 Pro 29 2019

The CUBE STEREO 120 Pro 29 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,5 kg.

Features

The CUBE STEREO 120 Pro 29 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cube Race SL Grip 29.5, 1-Clamp
Pedals
None included
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
Natural Fit Kinetic Race
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Performance Post, 31.6mm
Handlebar
Newmen Evolution 318.20, 720mm
Brake lever
Shimano BR-MT500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano FC-MT500-B2, Boost, 36x22T, 175mm
Shifter
Shimano Deore SL-M6000-I, Direct Attach, Rapidfire Plus
Bottom bracket
Press-fit
Front derailleur
Shimano Deore FD-M6020-D, Direct Mount, Side Swing
Chain
KMC X10
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
HPA Advanced Hydroform, ATG, ETC 4-Link, AXH
Rear suspension
SR Suntour DUAir LOR
Front suspension
SR Suntour XCR 34 AIR
Wheels
Rims
Answer Atac Duroc 30, 15x110mm / 12x148mm, Tubeless Ready
Tires
Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.35
Spokes
Answer Atac Duroc 30 wheelset
Rear hub
Answer Atac Duroc 30 wheelset, 15mm x 110mm front, 12mm x 148mm rear
Front hub
Answer Atac Duroc 30 wheelset, 15mm x 110mm front, 12mm x 148mm rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
71,0º
71,0º
71,0º
71,0º
c
Top tube length
574,0
595,0
618,0
644,0
d
Head tube length
100,0
103,0
113,0
133,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
50,0
50,0
50,0
50,0
g
Trail
105,0
105,0
105,0
105,0
h
Wheelbase
1149,0
1170,0
1194,0
1222,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
608,0
610,0
619,0
638,0
l
Reach
424,0
444,0
464,0
484,0
m
Standover height
-
-
-
-
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
715,0
736,0
760,0
788,0
