CUBE STEREO 120 PRO 29 2020

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,9 kg
Front travel
130mm
Rear travel
120mm

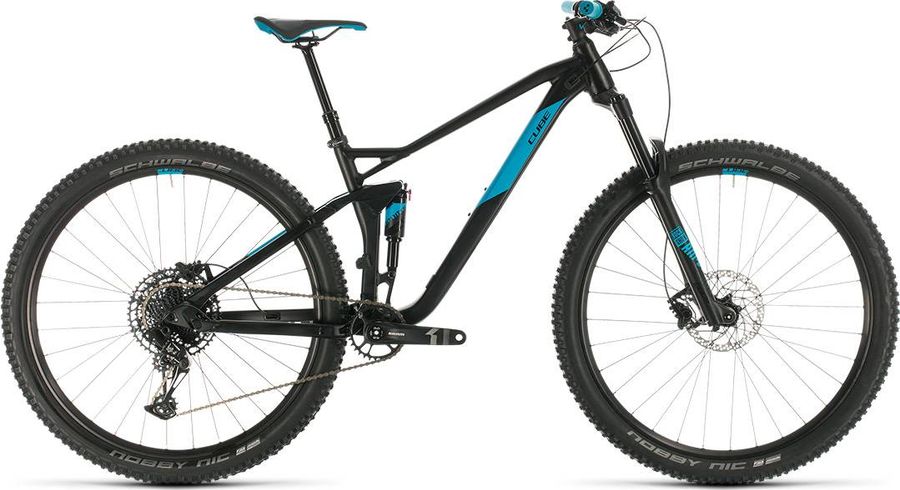

CUBE STEREO 120 PRO 29 2020

About the CUBE STEREO 120 PRO 29 2020

The CUBE STEREO 120 PRO 29 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 14,9 kg.

Features

The CUBE STEREO 120 PRO 29 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Cube Race SL Grip 29.5mm, 1-Clamp
Components
Steam
Newmen Evolution 318.4, 31.8mm
Saddle
Natural Fit Venec
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 425x130mm (403x120mm for smallest frame size)
Handlebar
Newmen Evolution 318.20, 760mm
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM X1 1000 Eagle™, 30T
Shifter
SRAM SX Eagle™ Trigger
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
HPA, High Performance Aluminium
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
Manitou Radium RL
Wheels
Rims
CUBE EX25
Tires
Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.35
Rear hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
75,3º
75,3º
75,3º
75,3º
c
Top tube length
573,9
594,8
618,0
644,3
d
Head tube length
100,0
103,0
113,0
133,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
48,0
48,0
48,0
48,0
g
Trail
107,0
107,0
107,0
107,0
h
Wheelbase
1149,0
1170,0
1194,0
1222,0
i
Chainstay length
439,5
439,5
439,5
439,5
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
607,0
610,0
619,0
638,0
l
Reach
424,0
444,0
464,0
484,0
m
Standover height
700,0
743,0
773,8
814,4
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
712,0
733,0
757,0
785,0
