CUBE STEREO 140 C:62 SL 29 2017

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,65 kg
Front travel
140mm
Rear travel
140mm

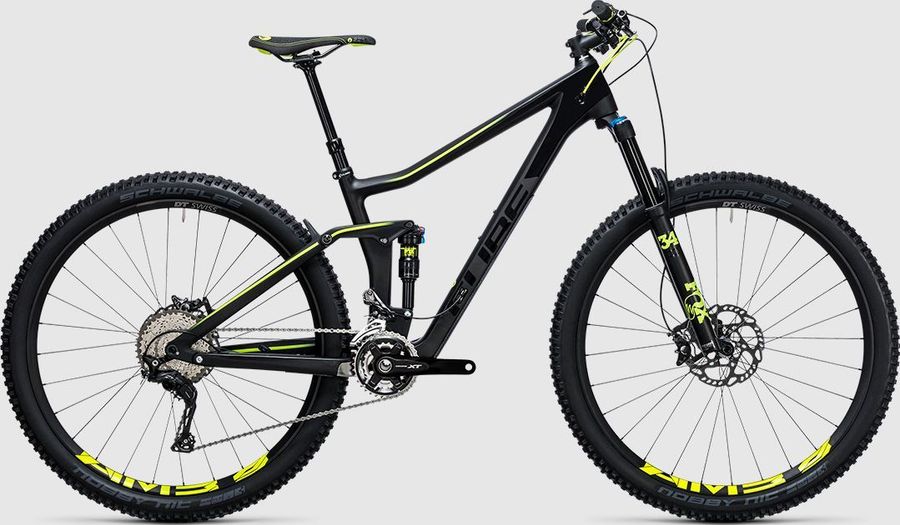

CUBE STEREO 140 C:62 SL 29 2017

About the CUBE STEREO 140 C:62 SL 29 2017

The CUBE STEREO 140 C:62 SL 29 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,65 kg.

Features

The CUBE STEREO 140 C:62 SL 29 2017 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip, 1-Clamp
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
SDG FLY MTN 2
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 458x150mm (400x120mm for smallest frame size)
Handlebar
CUBE Rise Trail Bar Pro Carbon, 750mm
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano XT FC-M8000-B2, 34x24T, Boost, 175mm
Shifter
Shimano XT SL-M8000-I, Direct Attach
Front derailleur
Shimano XT FD-M8020-D, Direct Mount, Side Swing
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
C:62 Monocoque Advanced Twin Mold Technology, ATG, ETC 4-Link, Boost148, AXH
Rear suspension
Fox Float DPS EVOL
Front suspension
Fox 34 Float
Wheels
Rims
DT CSW AM 3.9 Straightpull Wheelset, 28/28 Spokes, 15mm Boost / X12 Boost, 622x30C, Tubeless Ready, DT Swiss Pro Head® Reinforcement System, Squorx® Alloy Nipples
Tires
Schwalbe Nobby Nic Kevlar 2.35, TrailStar, Tubeless Easy

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
74,7º
74,7º
74,7º
74,7º
c
Top tube length
574,0
594,0
612,0
623,0
d
Head tube length
110,0
120,0
130,0
150,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
96,0
96,0
96,0
96,0
h
Wheelbase
1147,0
1168,0
1186,0
1198,0
i
Chainstay length
450,5
450,5
450,5
450,5
j
Bottom bracket drop
36,0
36,0
36,0
36,0
k
Stack height
631,0
641,0
650,0
668,0
l
Reach
408,0
425,0
440,0
444,0
m
Standover height
-
-
-
-
x
Bottom bracket height
338,0
338,0
338,0
338,0
y
Front center
699,0
720,0
738,0
750,0
