CUBE STEREO 140 C:68 SLT 27.5 2017

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
11,5 kg
Front travel
150mm
Rear travel
140mm

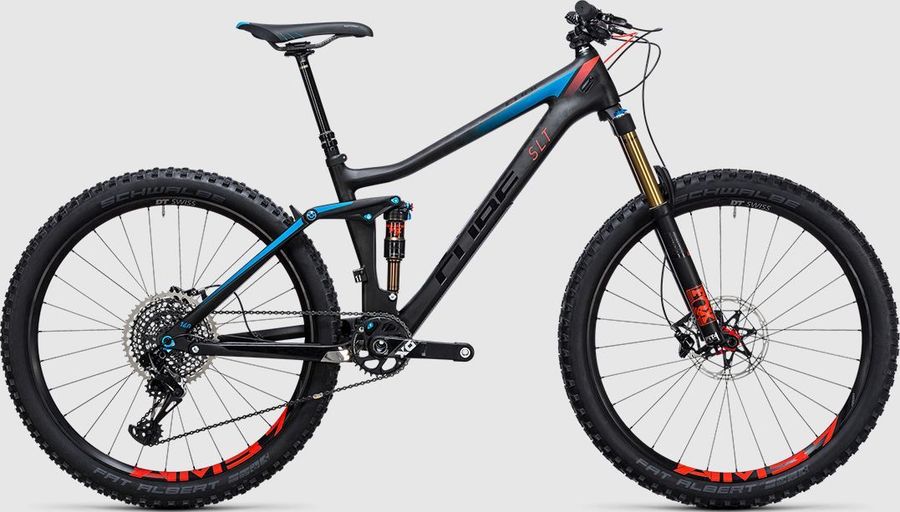

CUBE STEREO 140 C:68 SLT 27.5 2017

About the CUBE STEREO 140 C:68 SLT 27.5 2017

The CUBE STEREO 140 C:68 SLT 27.5 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 11,5 kg.

Features

The CUBE STEREO 140 C:68 SLT 27.5 2017 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip, 1-Clamp
Components
Steam
Syntace Megaforce 2, 31.8mm
Saddle
Fi`zi:k Gobi Carbon Braided
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Rock Shox Reverb Stealth 31.6mm, 440x150mm (390x125mm for smallest frame size)
Handlebar
Syntace Vector Carbon High20, 780mm
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XO1 Eagle, 32T, 175mm
Shifter
SRAM XO1 Eagle Trigger
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
C:68 Monocoque Advanced Twin Mold Technology, ATG, ETC 4-Link, AXH
Front suspension
Fox 34 Float Factory Kashima
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
DT CSW AM 3.7 Straightpull Wheelset, 28/28 Spokes, 15mm / X12, 584x30C, Tubeless Ready, DT Swiss Pro Head® Reinforcement System, Squorx® Alloy Nipples
Tires
Schwalbe Fat Albert Kevlar 2.35, TrailStar, Tubeless Easy

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
380,0
400,0
450,0
500,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
567,0
587,0
605,0
616,0
d
Head tube length
110,0
120,0
130,0
150,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
44,0
43,0
44,0
44,0
g
Trail
100,0
101,0
100,0
100,0
h
Wheelbase
1129,0
1149,0
1168,0
1181,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
15,5
15,5
15,5
15,5
k
Stack height
586,0
595,0
604,0
623,0
l
Reach
409,0
426,0
441,0
446,0
m
Standover height
-
-
-
-
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
697,0
717,0
736,0
749,0
