CUBE STEREO 140 HPA Pro 27.5 2017

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14 kg
Front travel
150mm
Rear travel
140mm

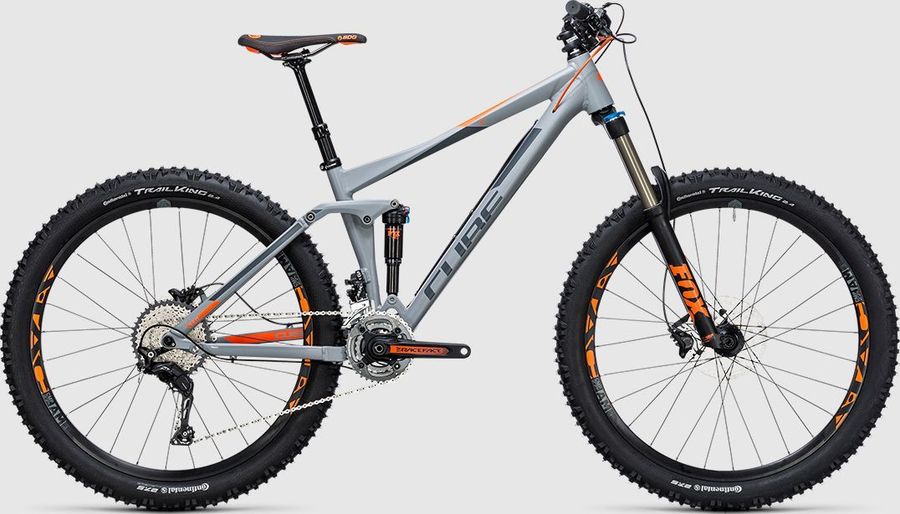

CUBE STEREO 140 HPA Pro 27.5 2017

About the CUBE STEREO 140 HPA Pro 27.5 2017

The CUBE STEREO 140 HPA Pro 27.5 2017 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14 kg.

Features

The CUBE STEREO 140 HPA Pro 27.5 2017 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip, 1-Clamp
Components
Steam
Race Face Ride 35
Saddle
SDG Fly MTN 2
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 458x150mm (400x120mm for smallest frame size)
Handlebar
Race Face Ride 35 Riser, 760mm
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Aeffect SL 36x26T, 175mm
Shifter
Shimano XT SL-M8000-B-I, Direct Attach
Front derailleur
Shimano SLX FD-M7025-D, Direct Mount, Down Swing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, AXH
Rear suspension
Fox Float DPS EVOL
Front suspension
Fox 34 Rhythm
Wheels
Rims
Answer Atac AM, 15mm / X12, Tubeless Ready
Tires
Conti Trail King, folding, 2.4

Geometry

Size 20" 16" 18" 22"
a
Seat tube length
450,0
360,0
400,0
500,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
602,0
564,0
584,0
613,0
d
Head tube length
130,0
110,0
120,0
150,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
43,0
44,0
45,0
44,0
g
Trail
101,0
100,0
99,0
100,0
h
Wheelbase
1165,0
1126,0
1147,0
1178,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
15,5
15,5
15,5
15,5
k
Stack height
603,0
585,0
594,0
621,0
l
Reach
438,0
405,0
422,0
442,0
m
Standover height
-
-
-
-
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
736,0
697,0
718,0
749,0
