CUBE STEREO 140 HPC RACE 27.5 2021

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,9 kg
Front travel
150mm
Rear travel
140mm

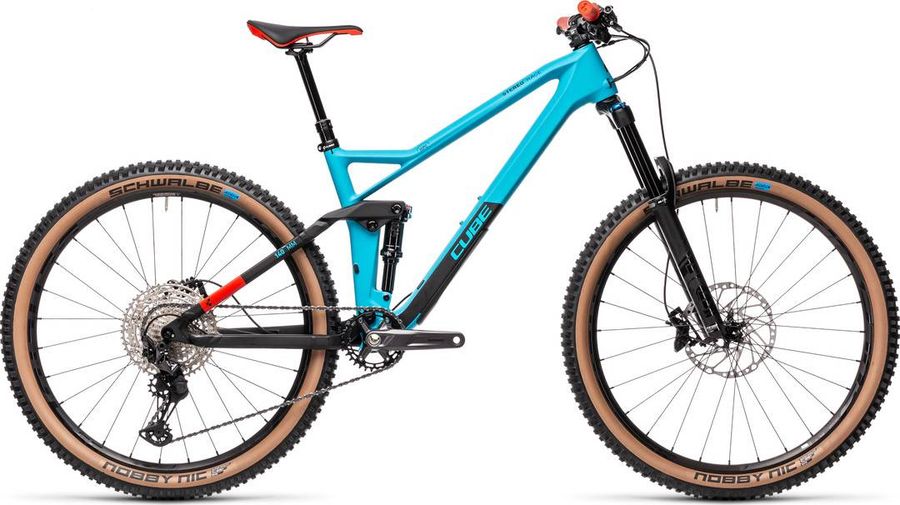

CUBE STEREO 140 HPC RACE 27.5 2021

About the CUBE STEREO 140 HPC RACE 27.5 2021

The CUBE STEREO 140 HPC RACE 27.5 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,9 kg.

Features

The CUBE STEREO 140 HPC RACE 27.5 2021 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
CUBE Race SL Grip 29.5mm, 1-Clamp
Components
Steam
Race Face Aeffect R 35
Saddle
Natural Fit Nuance Lite
Headset
HPC, High Performance Composite
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 130mm (120mm for size S)
Handlebar
Race Face Ride 35, 760mm
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano FC-MT511, 32T
Shifter
Shimano Deore SL-M6100, Rapidfire-Plus
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
HPC, High Performance Composite
Rear suspension
Fox Float DPS
Front suspension
Fox 34 Float Rhythm
Wheels
Rims
Fulcrum Red 55 EM
Tires
Schwalbe Nobby Nic, Super Ground, Addix Speedgrip, Kevlar, 2.35

Geometry

Size SM MD LG XL
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
75,2º
75,2º
75,2º
75,2º
c
Top tube length
572,0
595,0
618,0
644,0
d
Head tube length
107,0
117,0
127,0
147,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
107,0
107,0
107,0
107,0
h
Wheelbase
1145,0
1169,0
1193,0
1221,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
15,5
15,5
15,5
15,5
k
Stack height
596,0
605,0
614,0
632,0
l
Reach
422,0
442,0
462,0
482,0
m
Standover height
737,0
738,0
760,0
769,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
716,0
740,0
764,0
792,0
