CUBE STEREO 140 HPC TM 2019

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,5 kg
Front travel
150mm
Rear travel
140mm

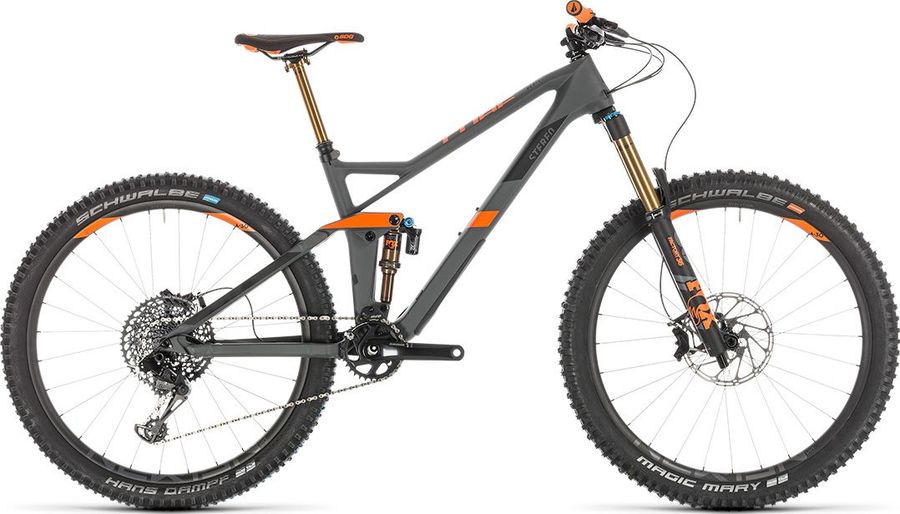

CUBE STEREO 140 HPC TM 2019

About the CUBE STEREO 140 HPC TM 2019

The CUBE STEREO 140 HPC TM 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,5 kg.

Features

The CUBE STEREO 140 HPC TM 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
SDG Slater
Pedals
None included
Components
Steam
Race Face Turbine R 35
Saddle
SDG FLY MTN 2
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Fox Transfer Factory 31.6mm, Kashima coated, 457x150mm (409x125mm for smallest frame size)
Handlebar
Race Face Next R 35 Carbon, 780mm
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X1 Eagle™ Carbon, 32T, 170mm
Shifter
SRAM GX Eagle™ Trigger
Chain guide
MRP 1X Chain Guide
Bottom bracket
Press-fit
Front derailleur
Direct mount (none included)
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, ISCG Mount, Boost 148, AXH
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires
Schwalbe Magic Mary, Addix Soft, Kevlar, Tubeless Easy, 2.35
Spokes
Newmen Evolution SL A.30 wheelset
Rear hub
Newmen Evolution SL A.30 wheelset, 15mm x 110mm front, 12mm x 148mm rear
Front hub
Newmen Evolution SL A.30 wheelset, 15mm x 110mm front, 12mm x 148mm rear

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
572,0
595,0
618,0
644,0
d
Head tube length
107,0
117,0
127,0
147,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
107,0
107,0
107,0
107,0
h
Wheelbase
1145,0
1169,0
1193,0
1221,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
k
Stack height
596,0
605,0
614,0
632,0
l
Reach
422,0
442,0
462,0
482,0
m
Standover height
-
-
-
-
x
Bottom bracket height
339,0
339,0
339,0
339,0
y
Front center
716,0
740,0
764,0
792,0
