Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
160mm

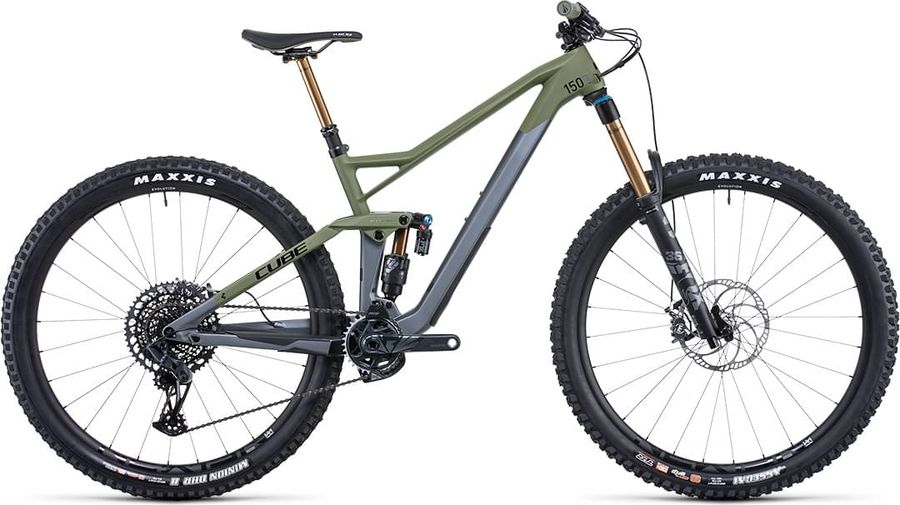

About the CUBE STEREO 150 C:62 TM 29 2022
The CUBE STEREO 150 C:62 TM 29 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,8 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
SDG Thrice
|
|---|
|
Steam
|
Race Face Turbine R 35
|
|---|---|
|
Saddle
|
SDG Bel Air V3
|
|
Headset
|
VP Integrated, Top 1 1/8", Bottom 1 1/2"
|
|
Seatpost
|
Fox Transfer Factory 31.6mm, Kashima Coated (S: 125mm, M/L: 150mm, XL: 175mm)
|
|
Handlebar
|
Race Face Turbine R 35, 800mm
|
|
Brakes
|
Magura MT7
|
|
Crankset
|
SRAM X1 Eagle™ Carbon DUB 32T, 170mm
|
|---|---|
|
Shifter
|
SRAM GX Eagle™ Trigger
|
|
Chain guide
|
MRP SXg Chain Guide
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Chain
|
SRAM SX Eagle
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
C:62 Monocoque Advanced Twin Mold Technology, ATG, ETC 4-Link, ISCG Mount, Boost 148, AXH
|
|---|---|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
|
|---|---|
|
Tires
|
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
375,0
|
425,0
|
470,0
|
520,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
563,0
|
584,0
|
608,0
|
635,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
130,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
10008,0
|
|
g
Trail
|
111,0
|
111,0
|
111,0
|
-10788,0
|
|
h
Wheelbase
|
1159,0
|
1181,0
|
1205,0
|
-
|
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
34,0
|
34,0
|
34,0
|
34,0
|
|
k
Stack height
|
611,0
|
616,0
|
625,0
|
643,0
|
|
l
Reach
|
409,0
|
429,0
|
449,0
|
469,0
|
|
m
Standover height
|
728,0
|
744,6
|
758,0
|
793,0
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
734,0
|
756,0
|
780,0
|
11707,0
|
