Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,9 kg
Front travel
160mm
Rear travel
150mm

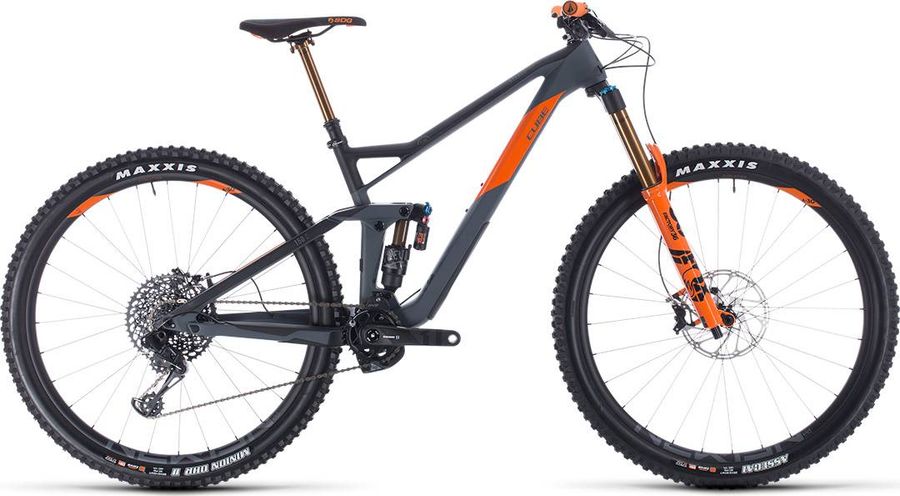

About the CUBE STEREO 150 C:68 TM 29 2020
The CUBE STEREO 150 C:68 TM 29 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,9 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
Grip
|
SDG Slater
|
---|
Steam
|
Race Face Turbine R 35
|
---|---|
Saddle
|
SDG Radar
|
Headset
|
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
|
Seatpost
|
Fox Transfer Factory 31.6mm, Kashima coated, 457x150mm (406x125mm for smallest frame size)
|
Handlebar
|
Race Face Turbine R 35, 800mm
|
Brakes
|
SRAM G2 RSC
Hydraulic
248 g
|
|
Crankset
|
SRAM X1 Eagle™ Carbon, 30T
|
---|---|
Shifter
|
SRAM NX Eagle™ Trigger
|
Chain guide
|
MRP SXg Chain Guide
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
Chain
|
SRAM SX Eagle
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
Frame
|
C:68, Carbon Technology
|
---|---|
Rear suspension
|
Fox Float X2 Factory
|
Front suspension
|
Fox 36 Float Factory
|
Rims
|
Newmen Evolution SL A.30
|
---|---|
Tires
|
Maxxis Assegai, MaxxTerra/EXO+, Tubeless Ready, 29 x 2.5 WT
|
Geometry
Size | 16" | 18" | 20" | 22" |
---|---|---|---|---|
a
Seat tube length
|
375,0
|
425,0
|
470,0
|
520,0
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
c
Top tube length
|
563,0
|
584,0
|
608,0
|
635,0
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
130,0
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
g
Trail
|
111,0
|
111,0
|
111,0
|
111,0
|
h
Wheelbase
|
1159,0
|
1181,0
|
1205,0
|
1233,0
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
j
Bottom bracket drop
|
34,0
|
34,0
|
34,0
|
34,0
|
k
Stack height
|
611,0
|
616,0
|
625,0
|
643,0
|
l
Reach
|
409,0
|
429,0
|
449,0
|
469,0
|
m
Standover height
|
728,0
|
744,6
|
758,0
|
793,0
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
y
Front center
|
734,0
|
756,0
|
780,0
|
808,0
|
