CUBE STEREO 160 C:62 SL 27.5 2017

MTB Enduro
Groupset
SRAM X1
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,35 kg
Front travel
160mm
Rear travel
160mm

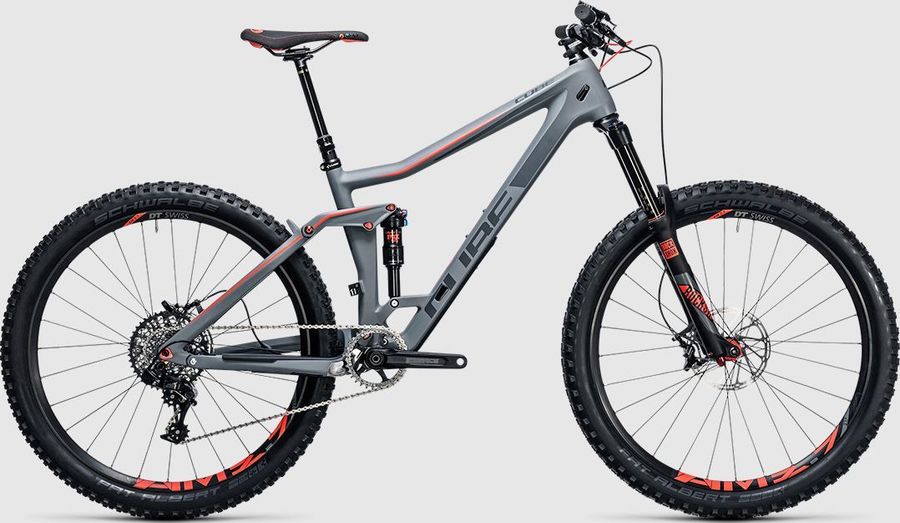

CUBE STEREO 160 C:62 SL 27.5 2017

About the CUBE STEREO 160 C:62 SL 27.5 2017

The CUBE STEREO 160 C:62 SL 27.5 2017 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X1 drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 12,35 kg.

Features

The CUBE STEREO 160 C:62 SL 27.5 2017 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip, 1-Clamp
Components
Steam
Race Face Ride 35
Saddle
SDG FLY MTN 2
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Rock Shox Reverb Stealth 31.6mm, 440x150mm (390x125mm for smallest frame size)
Handlebar
Race Face Ride 35 Riser, 760mm
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Chain
SRAM 11-Speed
Crankset
Race Face Aeffect SL 32T, 175mm
Shifter
SRAM X1 Trigger
Rear derailleur
SRAM X1 X-HORIZON Rear Derailleur 11s 256 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black
Max tooth
42
Model
RD-X-1-A2
Name
X1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
256
Cassette
SRAM XG-1180 MINI CLUSTER Cassette 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1180-A1
Name
XG-1180 MINI CLUSTER Cassette
Speed
11s
Technology cassete
XG
Frameset
Frame
C:62 Monocoque Advanced Twin Mold Technology, ATG, ETC 4-Link, ISCG Mount, Boost148, AXH
Rear suspension
Fox Float DPS EVOL
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
DT CSW AM 2.7 Straightpull Wheelset, 28/28 Spokes, 15mm / X12 Boost, 584x25C, Tubeless Ready
Tires
Schwalbe Fat Albert Kevlar 2.35, TrailStar, Tubeless Easy

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
380,0
420,0
470,0
520,0
b
Seat tube angle
75,2º
75,2º
75,2º
75,2º
c
Top tube length
563,0
583,0
601,0
612,0
d
Head tube length
115,0
128,0
138,0
155,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
45,0
g
Trail
110,0
110,0
110,0
109,0
h
Wheelbase
1154,0
1176,0
1195,0
1208,0
i
Chainstay length
432,5
432,5
432,5
432,5
j
Bottom bracket drop
14,0
14,0
14,0
14,0
k
Stack height
601,0
613,0
622,0
637,0
l
Reach
408,0
425,0
439,0
445,0
m
Standover height
-
-
-
-
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
722,0
744,0
763,0
776,0
