BikeWise

CUBE STEREO 160 C:68 Action Team 27.5 2017

MTB Enduro
Groupset
Shimano XTR
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,2 kg
Front travel
160mm
Rear travel
160mm

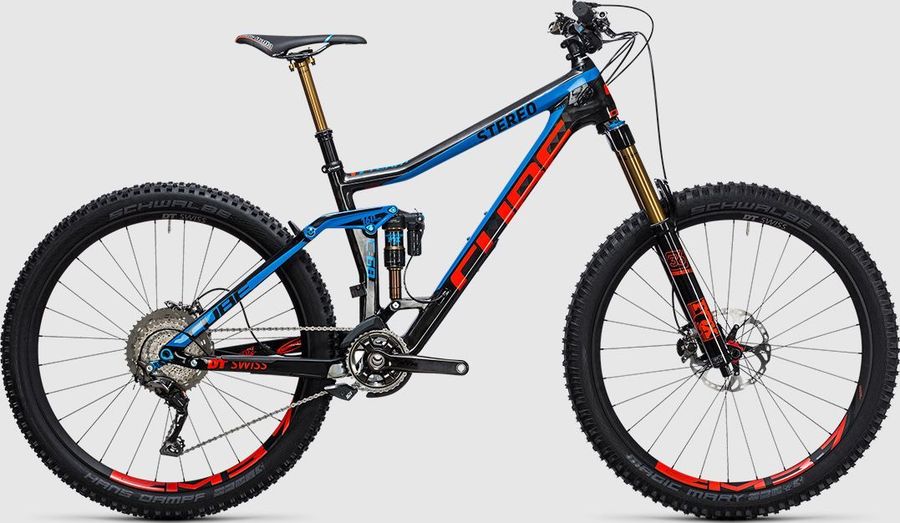

CUBE STEREO 160 C:68 Action Team 27.5 2017

About the CUBE STEREO 160 C:68 Action Team 27.5 2017

The CUBE STEREO 160 C:68 Action Team 27.5 2017 is a Full suspension Enduro Mountain Bike. Equipped with a Shimano XTR drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 13,2 kg.

Features

The CUBE STEREO 160 C:68 Action Team 27.5 2017 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip, 1-Clamp
Components
Steam
Race Face Turbine R 35
Saddle
Selle Italia SLR MG
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Fox Transfer Factory 31.6mm, Kashima coated, 456x150mm (409x125mm for smallest frame size)
Handlebar
Race Face SixC 35 Carbon, 800mm
Brakes
Shimano XTR BR-M9020 359.6 g Hydraulic disc brake 2 piston
Average weight (g)
359.6
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G02A Resin
G03A Resin
Pad option
G04Ti Metal
Pad standard
J02A Resin
J03A Resin
Pad standard
J04C Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR FC-M9020 Boost, 32T, 175mm
Shifter
Shimano XTR SL-M9000-I Direct Attach
Front derailleur
e*thirteen LG1+ Chain Guide, ISCG05
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
C:68 Monocoque Advanced Twin Mold Technology, ATG, ETC 4-Link, ISCG Mount, Boost148, AXH
Rear suspension
Fox Float X Factory
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
DT CSW EM 3.7 Straightpull Wheelset, 28/28 Spokes, 15mm / X12 Boost, 584x30C, Tubeless Ready, DT Swiss Pro Head® Reinforcement System, Squorx® Alloy Nipples
Tires
Schwalbe Magic Mary 2.35, Super Gravity, VertStar Tubeless Easy

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
380,0
420,0
470,0
520,0
b
Seat tube angle
75,2º
75,2º
75,2º
75,2º
c
Top tube length
563,0
583,0
601,0
612,0
d
Head tube length
115,0
128,0
138,0
155,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
45,0
g
Trail
110,0
110,0
110,0
109,0
h
Wheelbase
1154,0
1176,0
1195,0
1208,0
i
Chainstay length
432,5
432,5
432,5
432,5
j
Bottom bracket drop
14,0
14,0
14,0
14,0
k
Stack height
601,0
613,0
622,0
637,0
l
Reach
408,0
425,0
439,0
445,0
m
Standover height
-
-
-
-
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
722,0
744,0
763,0
776,0
