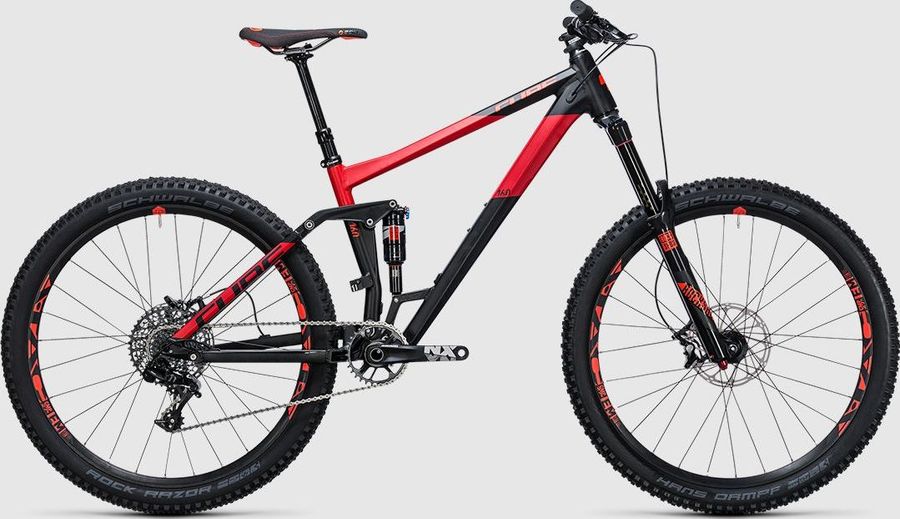

CUBE STEREO 160 HPA Race 27.5 2017

MTB Enduro
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,6 kg
Front travel
160mm
Rear travel
160mm
CUBE STEREO 160 HPA Race 27.5 2017

About the CUBE STEREO 160 HPA Race 27.5 2017

The CUBE STEREO 160 HPA Race 27.5 2017 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 13,6 kg.

Features

The CUBE STEREO 160 HPA Race 27.5 2017 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip, 1-Clamp
Components
Steam
Race Face Ride 35
Saddle
SDG FLY MTN 2
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 458x150mm (400x120mm for smallest frame size)
Handlebar
Race Face Ride 35 Riser, 760mm
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Chain
SRAM 11-Speed
Crankset
SRAM NX direct mount 32T, 175mm
Shifter
SRAM GX Trigger
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Frameset
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, Boost148, AXH
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Monarch RT
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380
Model
RS-MNR-RT-D3
Name
Monarch RT
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Wheels
Rims
Answer Atac EM, 15mm / X12 Boost, Tubeless Ready
Tires
Schwalbe Hans Dampf Kevlar 2.35, TrailStar, Tubeless Easy

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
370,0
420,0
470,0
520,0
b
Seat tube angle
75,2º
75,2º
75,2º
75,2º
c
Top tube length
570,0
590,0
608,0
619,0
d
Head tube length
113,3
126,3
136,3
153,3
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
44,0
45,0
g
Trail
110,0
110,0
110,0
109,0
h
Wheelbase
1161,0
1183,0
1202,0
1215,0
i
Chainstay length
439,5
439,5
439,5
439,5
j
Bottom bracket drop
14,0
14,0
14,0
14,0
k
Stack height
608,0
620,0
629,0
644,0
l
Reach
415,0
432,0
446,0
452,0
m
Standover height
-
-
-
-
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
722,0
744,0
763,0
776,0
