CUBE STEREO 170 TM 29 2021

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,8 kg
Front travel
180mm
Rear travel
170mm

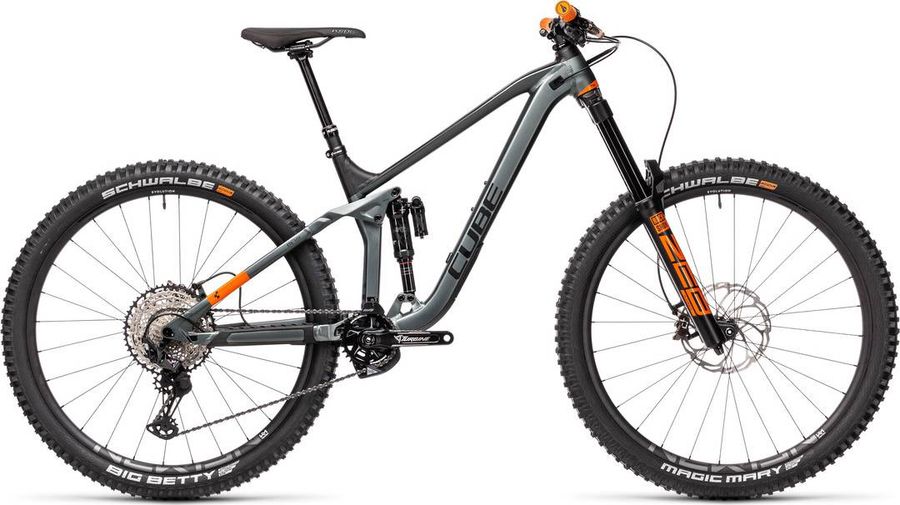

CUBE STEREO 170 TM 29 2021

About the CUBE STEREO 170 TM 29 2021

The CUBE STEREO 170 TM 29 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 15,8 kg.

Features

The CUBE STEREO 170 TM 29 2021 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Thrice
Components
Steam
Race Face Turbine R 35
Saddle
SDG Radar
Headset
ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment
Seatpost
SDG Tellis, Handlebar Lever, Internal Cable Routing, 31.6mm, 170mm (150mm for size M)
Handlebar
Race Face Next R 35 Carbon, 800mm
Brakes
Hayes Dominion A4
Drivetrain
Crankset
Race Face Turbine, 30T
Shifter
Shimano XT SL-M8100
Chain guide
MRP SXg Chain Guide
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
HPA, High Performance Aluminium
Front suspension
RockShox ZEB Ultimate DebonAir, Dual Position Air 2265 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Grey
Damper type
Charger 2.1 RC2
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-ULT-A1
Name
ZEB Ultimate
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2265
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
Newmen Evolution SL A.30
Tires
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4

Geometry

Size MD LG XL
a
Seat tube length
420,0
470,0
520,0
b
Seat tube angle
76,7º
76,7º
76,7º
c
Top tube length
584,0
607,0
634,0
d
Head tube length
103,0
113,0
133,0
e
Head tube angle
64,4º
64,4º
64,4º
f
Rake
51,0
51,0
51,0
g
Trail
123,0
123,0
123,0
h
Wheelbase
1223,0
1247,0
1276,0
i
Chainstay length
437,5
437,5
437,5
j
Bottom bracket drop
26,59
26,56
26,54
k
Stack height
622,0
631,0
649,0
l
Reach
449,0
469,0
489,0
m
Standover height
746,0
753,0
795,0
x
Bottom bracket height
348,0
348,0
348,0
y
Front center
787,0
811,0
840,0
