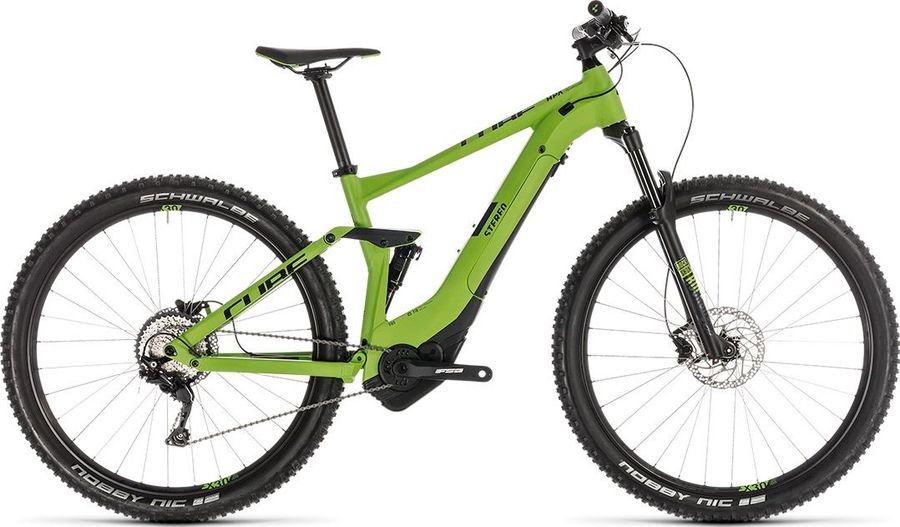

CUBE STEREO HYBRID 120 Pro 500 2019
The CUBE STEREO HYBRID 120 Pro 500 2019 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
23,9 kg
Front travel
120mm
Rear travel
120mm
About the CUBE STEREO HYBRID 120 Pro 500 2019
The CUBE STEREO HYBRID 120 Pro 500 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 23,9 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
CUBE Race Grip 31mm, 1-Clamp
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Remote
|
Bosch Purion
|
|
Steam
|
Newmen Evolution 318.4, 31.8mm
|
|---|---|
|
Saddle
|
Natural Fit Active
|
|
Battery
|
Bosch PowerTube 500
|
|
Charger
|
Bosch 2A
|
|
Headset
|
FSA 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
|
|
Seatpost
|
CUBE Performance Post, 31.6mm
|
|
Handlebar
|
Newmen Evolution 318.20, 760mm
|
|
Brake lever
|
Shimano BR-MT400
|
|
Brakes
|
Shimano BR-MT400
Hydraulic disc brake
2 piston
|
|
BL-MT401 BL-MT402-3A SM-RT54* SM-RT56* |
|
|
Crankset
|
FSA CK-745, 15T, 170mm
|
|---|---|
|
Motor
|
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
|
|
Shifter
|
Shimano Deore SL-M6000, Rapidfire-Plus
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG500-10
|
|
Frame
|
Aluminium Superlite, Gravity Casting, Triple Butted, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
|
|---|---|
|
Front suspension
|
RockShox Judy Silver TK
Solo Air
|
|
|
|
|
Rear suspension
|
RockShox Monarch RL
215 g
|
|
|
|
|
Rims
|
CUBE EX30, 32H, Disc, Tubeless Ready
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic, PerfL, 2.60
|
|
Rear hub
|
Shimano FH-MT400-B, 12mm, Boost, Centerlock
|
|
Front hub
|
Shimano HB-MT400-B, 15QR, Boost, Centerlock
|
Geometry
| Size | 16" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
|
a
Seat tube length
|
375,0
|
395,0
|
445,0
|
485,0
|
545,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
557,0
|
570,0
|
587,0
|
607,0
|
627,0
|
|
d
Head tube length
|
126,0
|
122,0
|
127,0
|
137,0
|
157,0
|
|
e
Head tube angle
|
67,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
44,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
100,0
|
93,0
|
93,0
|
93,0
|
93,0
|
|
h
Wheelbase
|
1148,0
|
1168,0
|
1186,0
|
1206,0
|
1228,0
|
|
i
Chainstay length
|
465,0
|
483,0
|
483,0
|
483,0
|
483,0
|
|
j
Bottom bracket drop
|
15,0
|
37,5
|
37,5
|
37,5
|
37,5
|
|
k
Stack height
|
578,0
|
617,0
|
622,0
|
631,0
|
650,0
|
|
l
Reach
|
391,0
|
392,0
|
408,0
|
425,0
|
439,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
340,0
|
337,0
|
337,0
|
337,0
|
337,0
|
|
y
Front center
|
683,0
|
687,0
|
705,0
|
725,0
|
747,0
|
