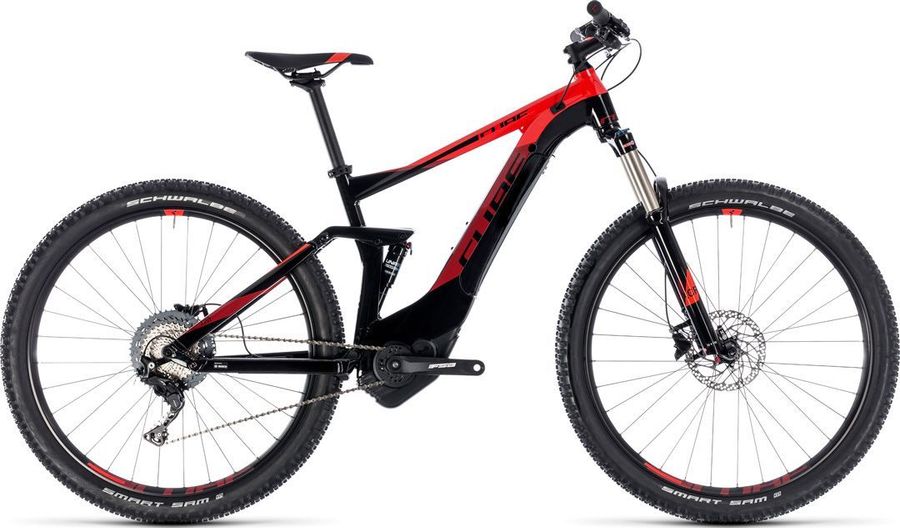

CUBE STEREO HYBRID 120 Pro 500 29 2018

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
23,8 kg
Front travel
120mm
Rear travel
120mm
CUBE STEREO HYBRID 120 Pro 500 29 2018

About the CUBE STEREO HYBRID 120 Pro 500 29 2018

The CUBE STEREO HYBRID 120 Pro 500 29 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 23,8 kg.

Features

The CUBE STEREO HYBRID 120 Pro 500 29 2018 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip 31, 1-Clamp
Remote
Bosch Purion
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
Selle Royal MTB
Battery
Bosch PowerTube 500
Headset
FSA 1.5B ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Performance Post, 31.6mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
FSA CK-745, 170mm, 15T
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter
Shimano SLX SL-M7000
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Aluminium Superlite, Gravity Casting, Tripple Butted, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH, FIB
Rear suspension
SR Suntour Unair LOR8
Front suspension
SR Suntour XCR 34 AIR
Wheels
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Rear hub
Shimano Deore FH-M6010-B, 12mm, Boost, Centerlock
Front hub
Shimano Deore HB-M6010-B, 15QR, Boost, Centerlock

Geometry

Size 17" 19" 21" 23"
a
Seat tube length
395,0
445,0
485,0
545,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
573,0
590,0
610,0
630,0
d
Head tube length
122,0
127,0
137,0
157,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
93,0
93,0
93,0
93,0
h
Wheelbase
1171,0
1189,0
1209,0
1231,0
i
Chainstay length
486,0
486,0
486,0
486,0
j
Bottom bracket drop
37,5
37,5
37,5
37,5
k
Stack height
620,0
625,0
634,0
653,0
l
Reach
395,0
411,0
428,0
442,0
m
Standover height
-
-
-
-
x
Bottom bracket height
337,0
337,0
337,0
337,0
y
Front center
687,0
705,0
725,0
747,0
