CUBE STEREO HYBRID 140 HPC RACE 625 29 2020

E-Bike
MTB Trail
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
23,7 kg
Front travel
140mm
Rear travel
140mm

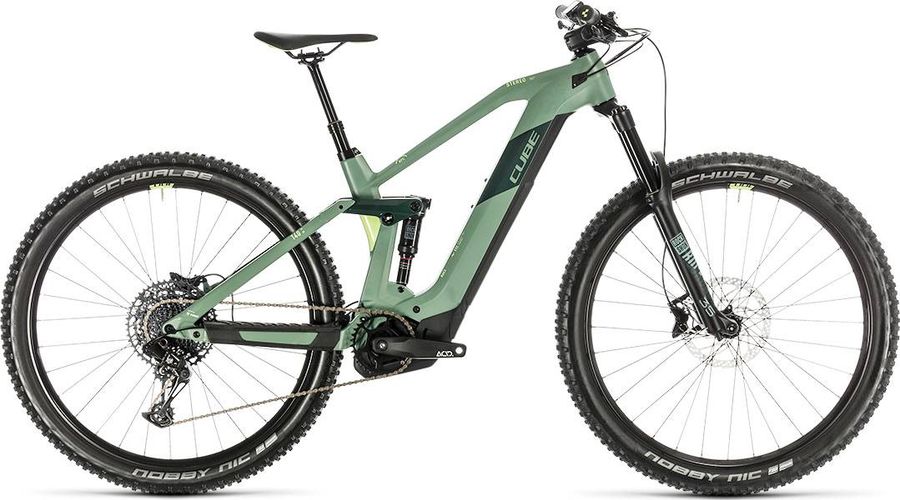

CUBE STEREO HYBRID 140 HPC RACE 625 29 2020

About the CUBE STEREO HYBRID 140 HPC RACE 625 29 2020

The CUBE STEREO HYBRID 140 HPC RACE 625 29 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 23,7 kg.

Features

The CUBE STEREO HYBRID 140 HPC RACE 625 29 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip 31mm, 1-Clamp
Remote
Kiox
Components
Steam
CUBE Performance Stem E-MTB, 31.8mm
Saddle
Natural Fit Venec Lite
Battery
PowerTube 625
Charger
2A
Headset
FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 361x100mm; 18": 403x120mm; 20", 22": 425x130mm)
Handlebar
Newmen Evolution SL 318.25, 760mm
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
ACID E-Crank, 34T
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Shifter
SRAM SX Eagle™ Trigger, Single Click
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
HPC, High Performance Composite
Front suspension
RockShox 35 Gold
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.60
Rear hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
375,0
420,0
470,0
520,0
b
Seat tube angle
75,2º
75,2º
75,2º
75,2º
c
Top tube length
561,0
582,0
606,0
633,0
d
Head tube length
105,0
108,0
118,0
138,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
111,0
111,0
111,0
111,0
h
Wheelbase
1177,0
1198,0
1223,0
1250,0
i
Chainstay length
449,0
449,0
449,0
449,0
j
Bottom bracket drop
36,0
36,0
36,0
36,0
k
Stack height
606,0
608,0
618,0
636,0
l
Reach
408,0
428,0
449,0
468,0
m
Standover height
763,0
763,0
763,0
798,0
x
Bottom bracket height
338,0
338,0
338,0
338,0
y
Front center
730,0
751,0
776,0
803,0
