BikeWise

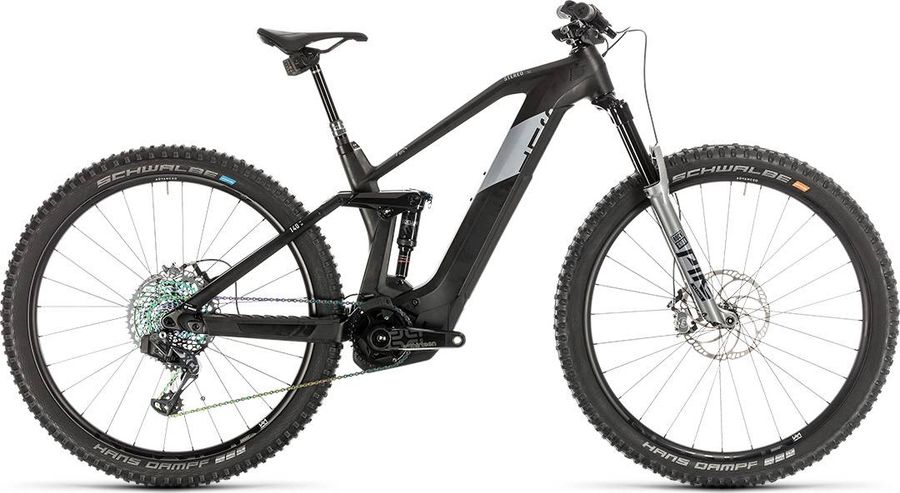

CUBE STEREO HYBRID 140 HPC SLT 625 29 2020

E-Bike
MTB Trail
Groupset
SRAM X01 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
22,1 kg
Front travel
140mm
Rear travel
140mm
CUBE STEREO HYBRID 140 HPC SLT 625 29 2020

About the CUBE STEREO HYBRID 140 HPC SLT 625 29 2020

The CUBE STEREO HYBRID 140 HPC SLT 625 29 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 22,1 kg.

Features

The CUBE STEREO HYBRID 140 HPC SLT 625 29 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
CUBE Race Grip 31mm, 1-Clamp
Remote
Kiox
Components
Steam
Race Face Turbine R 35
Saddle
Natural Fit Nuance SL
Battery
PowerTube 625
Charger
4A
Headset
FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
RockShox Reverb AXS™ 31.6mm (16": 340x100mm; 18": 390x125mm; 20", 22": 440x150mm)
Handlebar
Race Face Next R 35 Carbon, 780mm
Brakes
Magura MT Trail Carbon
Drivetrain
Crankset
e*thirteen TRSr Carbon Crank, 34T
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Shifter
SRAM Eagle AXS™ Controller
Chain guide
e*thirteen Plus e*spec
Rear derailleur
SRAM X01 Eagle AXS 12s
Cage material
Aluminum
Color
Black, Grey, Lunar, Red
Max tooth
52
Model
RD-X0-1E-A1
Name
X01 Eagle AXS Derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM Eagle XX1 Rainbow
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Frameset
Frame
HPC, High Performance Composite
Rear suspension
RockShox Deluxe Ultimate 340 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-ULT-B2
Name
Deluxe Ultimate
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Front suspension
RockShox Pike Ultimate RC2 DebonAir 1832 g
Color
Gloss Black, Gloss Silver
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-ULT-B3
Name
Pike Ultimate
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, RC2 damper, Maxle Stealth
Weight
1832
Wheel size
27.5", 29"
Wheels
Rims
Newmen Advanced SL E.30 Carbon
Tires
Schwalbe Hans Dampf, Addix Soft, Apex, Tubeless Easy, 2.60

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
375,0
420,0
470,0
520,0
b
Seat tube angle
75,2º
75,2º
75,2º
75,2º
c
Top tube length
561,0
582,0
606,0
633,0
d
Head tube length
105,0
108,0
118,0
138,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
111,0
111,0
111,0
111,0
h
Wheelbase
1177,0
1198,0
1223,0
1250,0
i
Chainstay length
449,0
449,0
449,0
449,0
j
Bottom bracket drop
36,0
36,0
36,0
36,0
k
Stack height
606,0
608,0
618,0
636,0
l
Reach
408,0
428,0
449,0
468,0
m
Standover height
763,0
763,0
763,0
798,0
x
Bottom bracket height
338,0
338,0
338,0
338,0
y
Front center
730,0
751,0
776,0
803,0
