BikeWise

CUBE Stereo Hybrid 140 Pro 500 2019

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,7 kg
Front travel
140mm
Rear travel
140mm

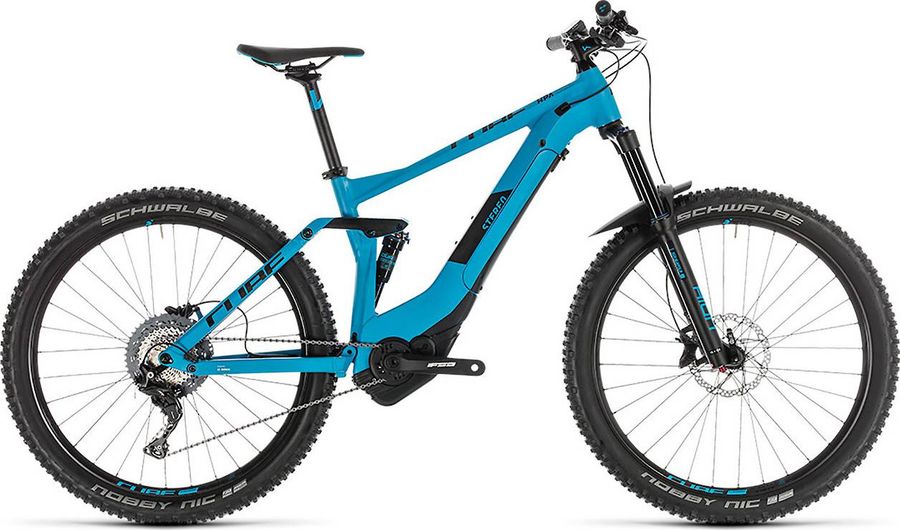

CUBE Stereo Hybrid 140 Pro 500 2019

About the CUBE Stereo Hybrid 140 Pro 500 2019

The CUBE Stereo Hybrid 140 Pro 500 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 23,7 kg.

Features

The CUBE Stereo Hybrid 140 Pro 500 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cube Race, 31mm, single clamp
Pedals
Cube PP MTB
Components
Steam
Newmen Evolution 318.4, 31.8mm diameter
Saddle
Cube Natural Fit Active
Battery
Bosch PowerTube 500 with Bosch 2A charger
Headset
FSA 1.5B ZS, zero stack
Seatpost
Newmen Evolution
Handlebar
Newmen Evolution 318.20, 760mm width
Brake lever
Shimano BR-MT520/BR-MT500
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
FSA CK-745, 170mm
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Aluminum
Front suspension
SR Suntour Aion RC
Rear suspension
SR Suntour DUAir LOR8
Wheels
Rims
Cube EX30, 32 hole, tubeless ready
Tires
Schwalbe Nobby Nic, Addix Performance, 27.5 x 2.60"
Rear hub
Front: Shimano HB-MT400-B, Boost, Center Lock, 15QR x 110mm, Rear: Shimano FH-MT400-B, Boost, Center Lock, 12mm x 148mm
Front hub
Front: Shimano HB-MT400-B, Boost, Center Lock, 15QR x 110mm, Rear: Shimano FH-MT400-B, Boost, Center Lock, 12mm x 148mm

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
390,0
420,0
470,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
577,0
597,0
617,0
635,0
d
Head tube length
120,0
120,0
130,0
150,0
e
Head tube angle
67,3º
67,3º
67,3º
67,3º
f
Rake
43,0
43,0
44,0
42,0
g
Trail
102,0
102,0
101,0
103,0
h
Wheelbase
1170,0
1190,0
1212,0
1232,0
i
Chainstay length
480,0
480,0
480,0
480,0
j
Bottom bracket drop
15,5
15,5
15,5
15,5
k
Stack height
604,0
604,0
614,0
635,0
l
Reach
407,0
427,0
444,0
457,0
m
Standover height
-
-
-
-
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
690,0
710,0
732,0
752,0
