CUBE STEREO HYBRID 160 HPC ACTIONTEAM 625 27.5 2020

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,5 kg
Front travel
170mm
Rear travel
160mm

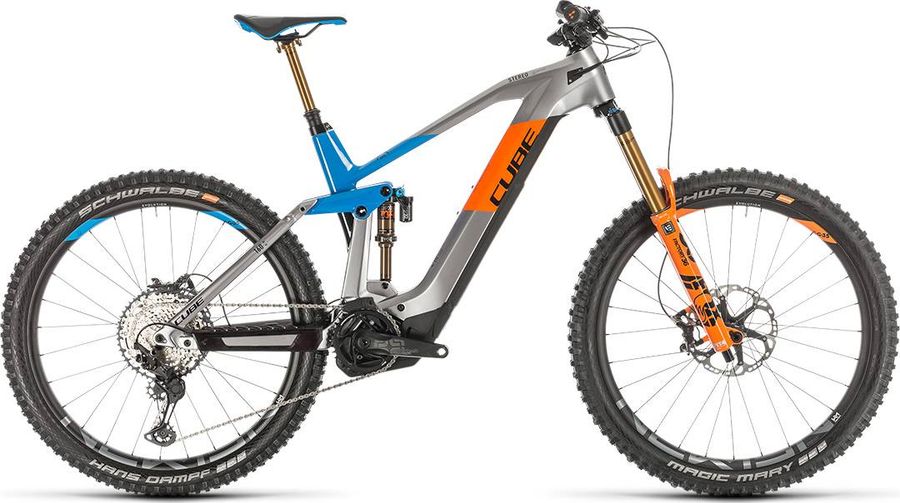

CUBE STEREO HYBRID 160 HPC ACTIONTEAM 625 27.5 2020

About the CUBE STEREO HYBRID 160 HPC ACTIONTEAM 625 27.5 2020

The CUBE STEREO HYBRID 160 HPC ACTIONTEAM 625 27.5 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 23,5 kg.

Features

The CUBE STEREO HYBRID 160 HPC ACTIONTEAM 625 27.5 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip 31mm, 1-Clamp
Remote
Kiox
Components
Steam
Race Face Turbine R 35
Saddle
Natural Fit Venec
Battery
PowerTube 625
Charger
4A
Headset
FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated (16": 359x100mm; 18": 409x125mm; 20", 22": 456x150mm)
Handlebar
Race Face Next R 35 Carbon, 800mm
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
e*thirteen Plus Crank, 36T
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Shifter
Shimano XT SL-M8100-IR, Direct Attach
Chain guide
e*thirteen Plus e*spec
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
HPC, High Performance Composite
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 36 Float Factory
Wheels
Rims
Newmen Evolution SL E.35, 28H, Disc, Tubeless Ready
Tires
Schwalbe Magic Mary Kevlar, Addix Soft, Super Gravity, Tubeless Easy, 2.60
Rear hub
Shimano XT FH-M8110-B, 12mm, Boost, Centerlock
Front hub
Shimano XT HB-M8110-B, 15QR, Boost, Centerlock

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
375,0
420,0
470,0
520,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
560,0
582,0
605,0
630,0
d
Head tube length
105,0
112,0
122,0
142,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
117,0
117,0
117,0
117,0
h
Wheelbase
1175,0
1198,0
1222,0
1251,0
i
Chainstay length
433,5
433,5
433,5
433,5
j
Bottom bracket drop
12,5
12,5
12,5
12,5
k
Stack height
590,0
597,0
606,0
624,0
l
Reach
412,0
432,0
452,0
472,0
m
Standover height
764,0
764,0
764,0
791,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
742,0
765,0
789,0
818,0
