CUBE STEREO HYBRID 160 HPC SL 625 27.5 2020

E-Bike
MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,3 kg
Front travel
170mm
Rear travel
160mm

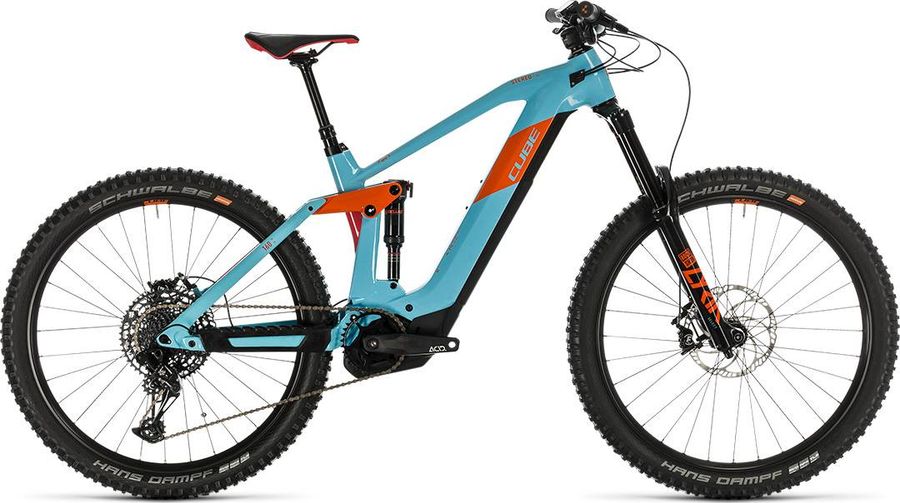

CUBE STEREO HYBRID 160 HPC SL 625 27.5 2020

About the CUBE STEREO HYBRID 160 HPC SL 625 27.5 2020

The CUBE STEREO HYBRID 160 HPC SL 625 27.5 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 23,3 kg.

Features

The CUBE STEREO HYBRID 160 HPC SL 625 27.5 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Race Grip 31mm, 1-Clamp
Remote
Purion
Components
Steam
CUBE Performance Stem E-MTB, 31.8mm
Saddle
Natural Fit Venec
Battery
PowerTube 625
Charger
2A
Headset
FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 370x100mm, 18": 420x125mm, 20", 22": 480x150mm)
Handlebar
Newmen Evolution SL 318.25, 760mm
Brakes
Magura MT Thirty
Drivetrain
Crankset
ACID E-Crank, 36T
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Shifter
SRAM SX Eagle™ Trigger, Single Click
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
HPC, High Performance Composite
Front suspension
RockShox Lyrik Select DebonAir 1996 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SEL-C2
Name
Lyrik Select
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
1996
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Hans Dampf Kevlar, Addix Soft, Apex, Tubeless Easy, 2.60
Rear hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Front hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
375,0
420,0
470,0
520,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
560,0
582,0
605,0
630,0
d
Head tube length
105,0
112,0
122,0
142,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
117,0
117,0
117,0
117,0
h
Wheelbase
1175,0
1198,0
1222,0
1251,0
i
Chainstay length
433,5
433,5
433,5
433,5
j
Bottom bracket drop
12,5
12,5
12,5
12,5
k
Stack height
590,0
597,0
606,0
624,0
l
Reach
412,0
432,0
452,0
472,0
m
Standover height
764,0
764,0
764,0
791,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
742,0
765,0
789,0
818,0
