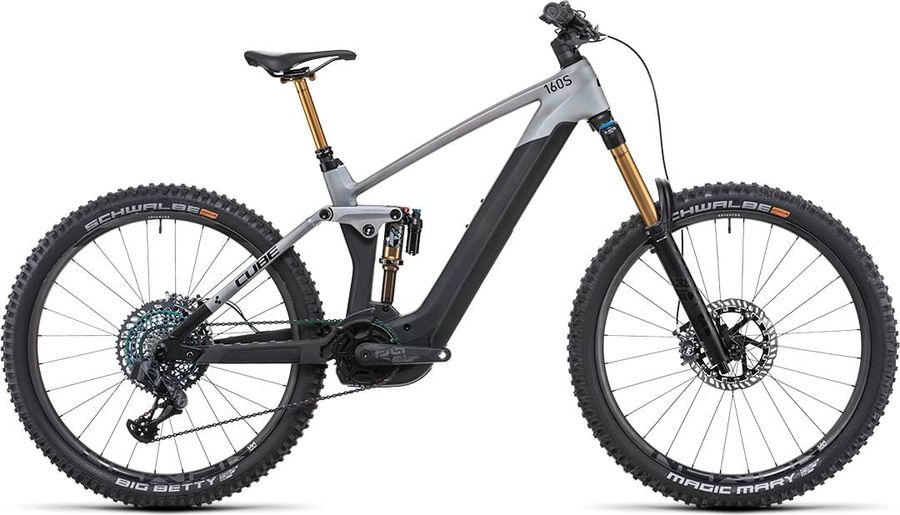

CUBE STEREO HYBRID 160 HPC SLT 27.5 2022
The CUBE STEREO HYBRID 160 HPC SLT 27.5 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,3 kg
Front travel
170mm
About the CUBE STEREO HYBRID 160 HPC SLT 27.5 2022
The CUBE STEREO HYBRID 160 HPC SLT 27.5 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 24,3 kg.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
ACID Disrupt, Soft Compound
|
|---|---|
|
Remote
|
[This component is subject to an embargo until 31.08.21]
|
|
Steam
|
CUBE Performance Stem E-MTB, 31.8mm
|
|---|---|
|
Saddle
|
Natural Fit Venec
|
|
Battery
|
[This component is subject to an embargo until 31.08.21]
|
|
Charger
|
[This component is subject to an embargo until 31.08.21]
|
|
Headset
|
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
|
|
Seatpost
|
Fox Transfer Factory 31.6mm, Kashima Coated (M,L: 150mm, XL: 175mm)
|
|
Handlebar
|
Newmen Advanced 318.25, Carbon, 780mm
|
|
Brakes
|
Magura MT7
|
|
Crankset
|
e*thirteen Plus Crank, 165mm, 36T
|
|---|---|
|
Motor
|
[This component is subject to an embargo until 31.08.21]
|
|
Shifter
|
SRAM Eagle AXS™ Controller
|
|
Chain guide
|
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
|
|
Chain
|
SRAM Eagle XX1 Rainbow
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle AXS
12s
|
|
|
|
|
Frame
|
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
|
|---|---|
|
Front suspension
|
Fox 38 Float Factory Kashima
|
|
Rear suspension
|
Fox Float X Factory
|
|
Rims
|
Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
|
|---|---|
|
Tires
|
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
|
Geometry
| Size | 18" | 20" | 22" |
|---|---|---|---|
|
a
Seat tube length
|
420,0
|
460,0
|
490,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
603,0
|
633,0
|
663,0
|
|
d
Head tube length
|
120,0
|
132,0
|
150,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
117,0
|
117,0
|
117,0
|
|
h
Wheelbase
|
1227,7
|
1259,2
|
1291,5
|
|
i
Chainstay length
|
444,5
|
444,5
|
444,5
|
|
j
Bottom bracket drop
|
12,5
|
12,5
|
12,5
|
|
k
Stack height
|
619,1
|
629,9
|
646,3
|
|
l
Reach
|
456,4
|
482,8
|
507,5
|
|
m
Standover height
|
772,9
|
772,3
|
795,6
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
783,0
|
815,0
|
847,0
|
