BikeWise

CUBE STEREO HYBRID 160 HPC TM 27.5 2022

E-Bike
MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,5 kg
Front travel
170mm

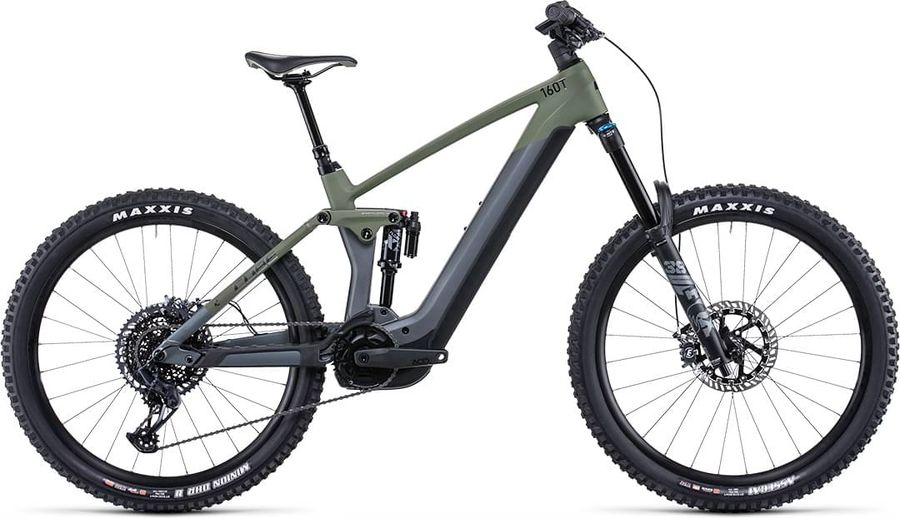

CUBE STEREO HYBRID 160 HPC TM 27.5 2022

About the CUBE STEREO HYBRID 160 HPC TM 27.5 2022

The CUBE STEREO HYBRID 160 HPC TM 27.5 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 24,5 kg.

Features

The CUBE STEREO HYBRID 160 HPC TM 27.5 2022 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ACID Disrupt, Soft Compound
Remote
[This component is subject to an embargo until 31.08.21]
Components
Steam
CUBE Performance Stem E-MTB, 31.8mm
Saddle
Natural Fit Venec
Battery
[This component is subject to an embargo until 31.08.21]
Charger
[This component is subject to an embargo until 31.08.21]
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
Handlebar
Newmen Evolution SL 318.25, 800mm
Brakes
Magura MT7
Drivetrain
Crankset
ACID E-Crank, 165mm, 36T
Motor
[This component is subject to an embargo until 31.08.21]
Shifter
SRAM GX Eagle™ Trigger, Single Click
Chain guide
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Rear suspension
Fox Float X
Front suspension
Fox 38 Float Performance
Wheels
Rims
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT

Geometry

Size 18" 20" 22"
a
Seat tube length
420,0
460,0
490,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
603,0
633,0
663,0
d
Head tube length
120,0
132,0
150,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
g
Trail
117,0
117,0
117,0
h
Wheelbase
1227,7
1259,2
1291,5
i
Chainstay length
444,5
444,5
444,5
j
Bottom bracket drop
12,5
12,5
12,5
k
Stack height
619,1
629,9
646,3
l
Reach
456,4
482,8
507,5
m
Standover height
772,9
772,3
795,6
x
Bottom bracket height
343,0
343,0
343,0
y
Front center
783,0
815,0
847,0
