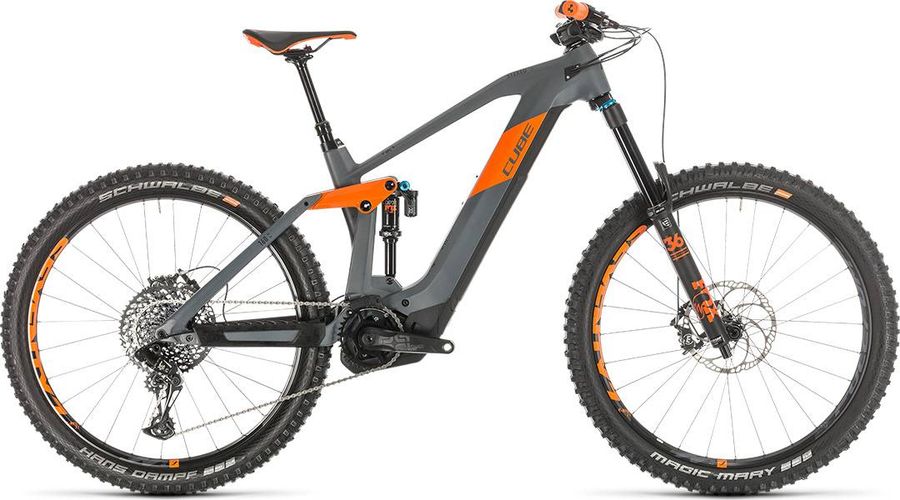

CUBE STEREO HYBRID 160 HPC TM 625 27.5 2020

E-Bike
MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
23,9 kg
Front travel
170mm
Rear travel
160mm
CUBE STEREO HYBRID 160 HPC TM 625 27.5 2020

About the CUBE STEREO HYBRID 160 HPC TM 625 27.5 2020

The CUBE STEREO HYBRID 160 HPC TM 625 27.5 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 23,9 kg.

Features

The CUBE STEREO HYBRID 160 HPC TM 625 27.5 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
CUBE Race Grip 31mm, 1-Clamp
Remote
Kiox
Components
Steam
CUBE Performance Stem E-MTB, 31.8mm
Saddle
Natural Fit Venec
Battery
PowerTube 625
Charger
4A
Headset
FSA Orbit Z 1.5E ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (16": 370x100mm, 18": 420x125mm, 20", 22": 480x150mm)
Handlebar
Newmen Evolution SL 318.25, 780mm
Brakes
Magura MT7
Drivetrain
Crankset
e*thirteen Plus Crank, 36T
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Shifter
SRAM NX Eagle™ Trigger, Single Click
Chain guide
e*thirteen Plus e*spec
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Frameset
Frame
HPC, High Performance Composite
Front suspension
Fox 36 Float
Rear suspension
Fox Float DPX2
Wheels
Rims
Fulcrum E-Metal 700
Tires
Schwalbe Magic Mary Kevlar, Addix Soft, Super Gravity, Tubeless Easy, 2.60

Geometry

Size 16" 18" 20" 22"
a
Seat tube length
375,0
420,0
470,0
520,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
560,0
582,0
605,0
630,0
d
Head tube length
105,0
112,0
122,0
142,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
117,0
117,0
117,0
117,0
h
Wheelbase
1175,0
1198,0
1222,0
1251,0
i
Chainstay length
433,5
433,5
433,5
433,5
j
Bottom bracket drop
12,5
12,5
12,5
12,5
k
Stack height
590,0
597,0
606,0
624,0
l
Reach
412,0
432,0
452,0
472,0
m
Standover height
764,0
764,0
764,0
791,0
x
Bottom bracket height
343,0
343,0
343,0
343,0
y
Front center
742,0
765,0
789,0
818,0
