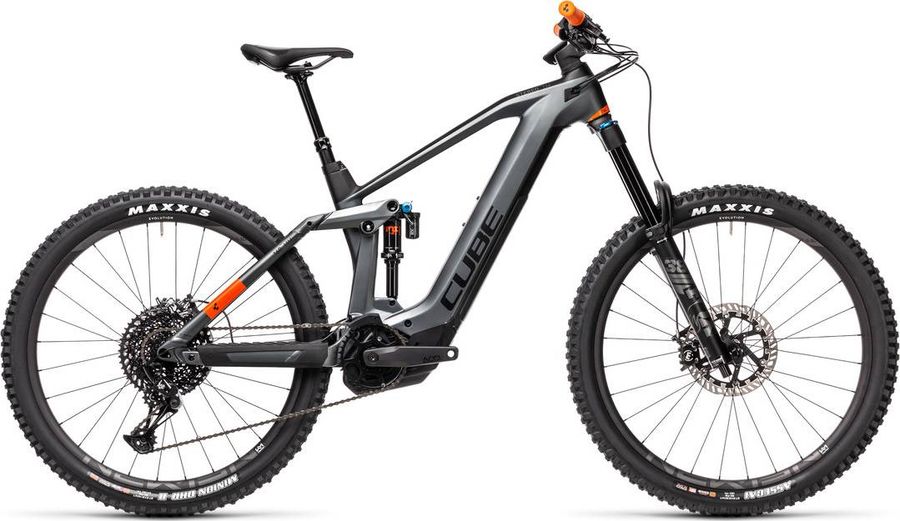

CUBE STEREO HYBRID 160 HPC TM 625 27.5 2021
The CUBE STEREO HYBRID 160 HPC TM 625 27.5 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,2 kg
Front travel
170mm
Rear travel
160mm
About the CUBE STEREO HYBRID 160 HPC TM 625 27.5 2021
The CUBE STEREO HYBRID 160 HPC TM 625 27.5 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,2 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
CUBE Race Grip 31mm, 1-Clamp
|
|---|---|
|
Remote
|
Kiox
|
|
Steam
|
CUBE Performance Stem E-MTB, 31.8mm
|
|---|---|
|
Saddle
|
Natural Fit Venec
|
|
Battery
|
PowerTube 625
|
|
Charger
|
4A
|
|
Headset
|
ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
|
|
Seatpost
|
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (S: 100mm, M: 125mm, L, XL: 150mm)
|
|
Handlebar
|
Newmen Evolution SL 318.25, 800mm
|
|
Brakes
|
Magura MT7
|
|
Crankset
|
ACID E-Crank, 36T
|
|---|---|
|
Motor
|
Bosch Drive Unit Performance CX GEN4 (85Nm)
|
|
Shifter
|
SRAM NX Eagle™ Trigger, Single Click
|
|
Chain guide
|
e*thirteen Plus e*spec
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Chain
|
SRAM SX Eagle
|
|
Frame
|
HPC, High Performance Composite
|
|---|---|
|
Rear suspension
|
Fox Float DPX2
|
|
Front suspension
|
Fox 38 Float Performance
|
|
Rims
|
Newmen Evolution SL E.30, 28/28 Spokes, 15x110/12x148mm, Tubeless Ready
|
|---|---|
|
Tires
|
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
|
Geometry
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
|
a
Seat tube length
|
375,0
|
420,0
|
470,0
|
520,0
|
|
b
Seat tube angle
|
75,5º
|
75,5º
|
75,5º
|
75,5º
|
|
c
Top tube length
|
560,0
|
582,0
|
605,0
|
630,0
|
|
d
Head tube length
|
105,0
|
112,0
|
122,0
|
142,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
117,0
|
117,0
|
117,0
|
117,0
|
|
h
Wheelbase
|
1175,0
|
1198,0
|
1222,0
|
1251,0
|
|
i
Chainstay length
|
433,5
|
433,5
|
433,5
|
433,5
|
|
j
Bottom bracket drop
|
12,5
|
12,5
|
12,5
|
12,5
|
|
k
Stack height
|
590,0
|
597,0
|
606,0
|
624,0
|
|
l
Reach
|
412,0
|
432,0
|
452,0
|
472,0
|
|
m
Standover height
|
764,0
|
764,0
|
764,0
|
791,0
|
|
x
Bottom bracket height
|
343,0
|
343,0
|
343,0
|
343,0
|
|
y
Front center
|
742,0
|
765,0
|
789,0
|
818,0
|
