CUBE Sting 120 WS EXC 2019

Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
120mm
Rear travel
120mm

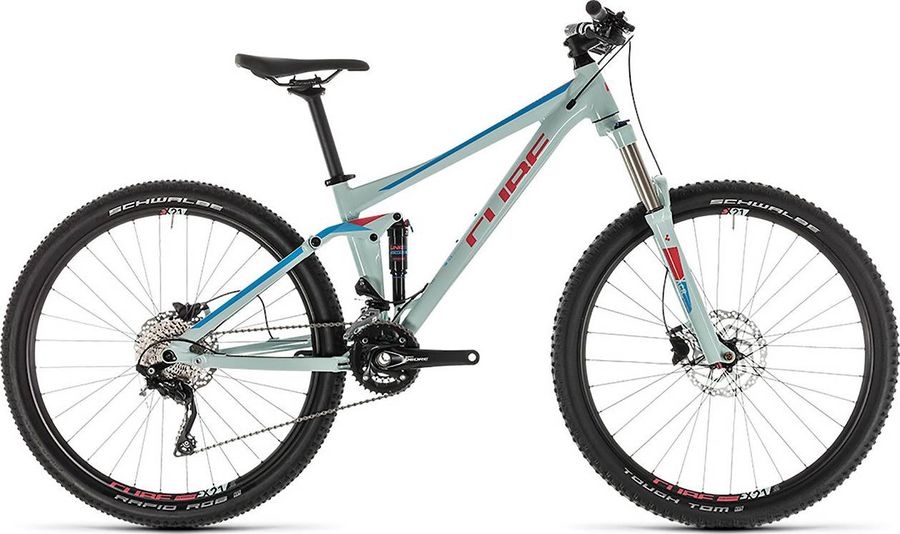

CUBE Sting 120 WS EXC 2019

About the CUBE Sting 120 WS EXC 2019

The CUBE Sting 120 WS EXC 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 13,8 kg.

Features

The CUBE Sting 120 WS EXC 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cube Performance
Pedals
None included
Components
Steam
Cube Performance Pro, 31.8mm diameter
Saddle
Cube Natural Fit Active WS
Headset
FSA 1.5E ZS, zero stack
Seatpost
Cube Performance
Handlebar
Cube Rise Trail, 700mm width
Brake lever
Shimano BR-MT200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano Deore FC-M617, 175mm
Shifter
Shimano Deore SL-M6000, Rapidfire Plus
Bottom bracket
Press-fit
Front derailleur
Shimano Deore FD-M617-D, direct mount, side swing
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Rear derailleur
Shimano Deore XT RD-M781 238 g SGS 10s
Average weight (g)
238
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M781-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
Aluminum
Rear suspension
SR Suntour Unair LOR8
Front suspension
SR Suntour XCR 32 AIR
Wheels
Rims
Cube EX21, 32 hole, tubeless ready
Tires
Front: Schwalbe Tough Tom, Active, 29 x 2.25" (27.5 x 2.25" for 13.5" and 16" frame), Rear: Schwalbe Rapid Rob, Active, 29 x 2.25" (27.5 x 2.25" for 13.5" and 16" frame)
Rear hub
Front: Shimano HB-MT400, 15QR x 110mm, Rear: Shimano FH-MT400, through axle, 12mm x 148mm
Front hub
Front: Shimano HB-MT400, 15QR x 110mm, Rear: Shimano FH-MT400, through axle, 12mm x 148mm

Geometry

Size 13.5" 16" 17" 19"
a
Seat tube length
335,0
375,0
395,0
445,0
b
Seat tube angle
74,74º
74,74º
75,23º
75,23º
c
Top tube length
549,0
569,5
579,0
598,0
d
Head tube length
105,0
110,0
110,0
120,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
44,0
51,0
51,0
g
Trail
93,0
93,0
85,0
85,0
h
Wheelbase
1089,0
1110,0
1146,0
1166,0
i
Chainstay length
431,0
431,0
449,5
449,5
j
Bottom bracket drop
20,0
20,0
42,5
42,5
k
Stack height
580,0
584,0
616,0
626,0
l
Reach
395,0
414,0
422,0
438,0
m
Standover height
-
-
-
-
x
Bottom bracket height
335,0
335,0
313,0
313,0
y
Front center
659,0
680,0
700,0
720,0
