CUBE Sting 140 WS HPC Race 2019

Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,9 kg
Front travel
150mm
Rear travel
140mm

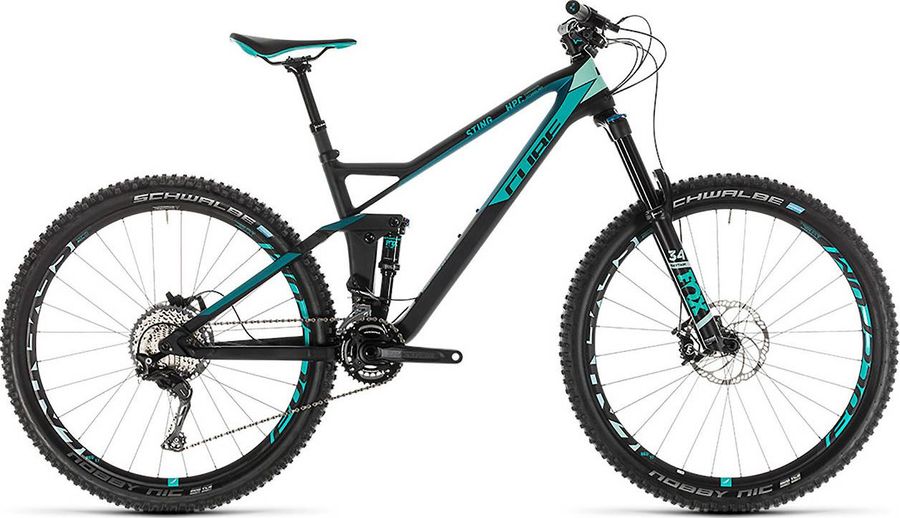

CUBE Sting 140 WS HPC Race 2019

About the CUBE Sting 140 WS HPC Race 2019

The CUBE Sting 140 WS HPC Race 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,9 kg.

Features

The CUBE Sting 140 WS HPC Race 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Cube Race SL 29.5, single clamp
Pedals
None included
Components
Steam
Newmen Evolution 318.4, 31.8mm diameter
Saddle
Cube Natural Fit Active Race WS
Headset
FSA Orbit I-t, integrated
Seatpost
Cube Dropper Post, handlebar lever, 400mm x 125mm (340mm x 100mm for 13.5" frame)
Handlebar
Newmen Evolution 318.20, 760mm width
Brake lever
Magura MT Trail
Brakes
Magura MT Trail Custom
Drivetrain
Crankset
Race Face Aeffect SL, 175mm
Shifter
Shimano XT SL-M8000-I, direct attach
Chain guide
None included
Bottom bracket
Press-fit
Front derailleur
Shimano SLX FD-M7020-D, direct mount, side swing
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPS EVOL
Front suspension
Fox 34 Rhythm
Wheels
Rims
Fulcrum Red 77 wheelset, 28 hole, tubeless ready
Tires
Schwalbe Nobby Nic, Addix Speedgrip, Tubeless Easy, kevlar, 27.5 x 2.35" (front and rear)
Spokes
Fulcrum Red 77 wheelset
Rear hub
Fulcrum Red 77 wheelset, 15mm x 110mm front, 12mm x 148mm rear
Front hub
Fulcrum Red 77 wheelset, 15mm x 110mm front, 12mm x 148mm rear

Geometry

Size 13.5" 16" 18"
a
Seat tube length
350,0
370,0
420,0
b
Seat tube angle
75,2º
75,2º
75,2º
c
Top tube length
547,3
568,8
591,8
d
Head tube length
102,0
107,0
117,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
g
Trail
107,0
107,0
107,0
h
Wheelbase
1120,0
1142,0
1166,0
i
Chainstay length
426,0
426,0
426,0
j
Bottom bracket drop
15,5
15,5
15,5
k
Stack height
588,0
593,0
602,0
l
Reach
399,0
419,0
439,0
m
Standover height
-
-
-
x
Bottom bracket height
340,0
340,0
340,0
y
Front center
694,0
716,0
740,0
