CUBE STING HYBRID 120 HPC SL 500 27.5 27.5 2018

E-Bike
Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
21,7 kg
Front travel
120mm
Rear travel
120mm

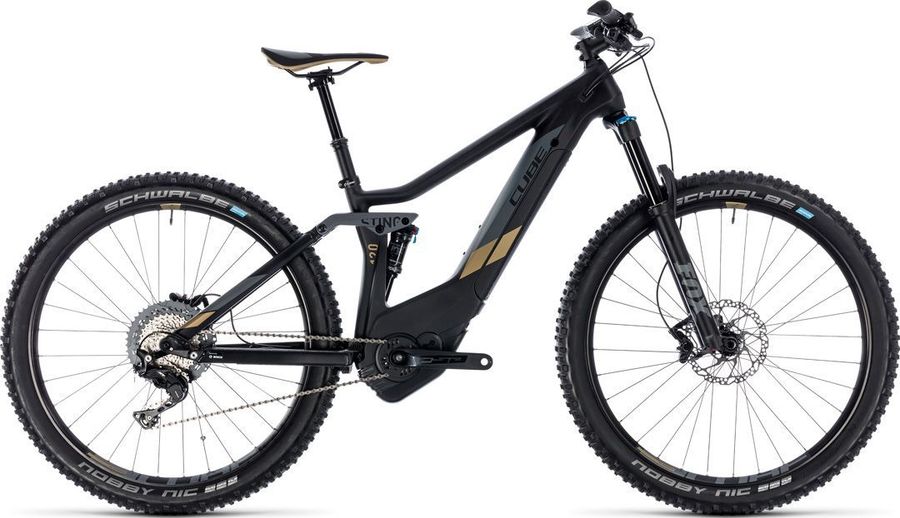

CUBE STING HYBRID 120 HPC SL 500 27.5 27.5 2018

About the CUBE STING HYBRID 120 HPC SL 500 27.5 27.5 2018

The CUBE STING HYBRID 120 HPC SL 500 27.5 27.5 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 21,7 kg.

Features

The CUBE STING HYBRID 120 HPC SL 500 27.5 27.5 2018 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
CUBE Natural Fit Comfort
Remote
Bosch Purion
Components
Steam
CUBE Performance Stem Pro, 31.8mm
Saddle
CUBE Race EXC 145
Battery
Bosch PowerTube 500
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seatpost
Fox Transfer Performance Elite 31.6mm (16": 359x100mm; 18": 409x125mm)
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Crankset
FSA CK-745, 170mm, 15T
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Shifter
Shimano SLX SL-M7000
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
C:62 Monocoque Advanced Twin Mold Technology FT, HPA RT, ETC 4-Link, ATG, Boost148, Tuned Drive Position, AXH, FIB
Rear suspension
Fox Float DPS
Front suspension
Fox 32 Rhythm
Wheels
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic Kevlar, Addix Speedgrip, Apex, Tubeless Easy (27.5: 2.60 // 29: 2.35)
Rear hub
Shimano XT FH-M8010-B, 12mm, Boost, Centerlock
Front hub
Shimano XT HB-M8010-B, 15QR, Boost, Centerlock

Geometry

Size 16"
a
Seat tube length
380,0
b
Seat tube angle
73,7º
c
Top tube length
570,5
d
Head tube length
105,0
e
Head tube angle
68,5º
f
Rake
44,0
g
Trail
93,0
h
Wheelbase
1149,0
i
Chainstay length
473,5
j
Bottom bracket drop
29,5
k
Stack height
592,0
l
Reach
403,0
m
Standover height
-
x
Bottom bracket height
326,0
y
Front center
677,0
