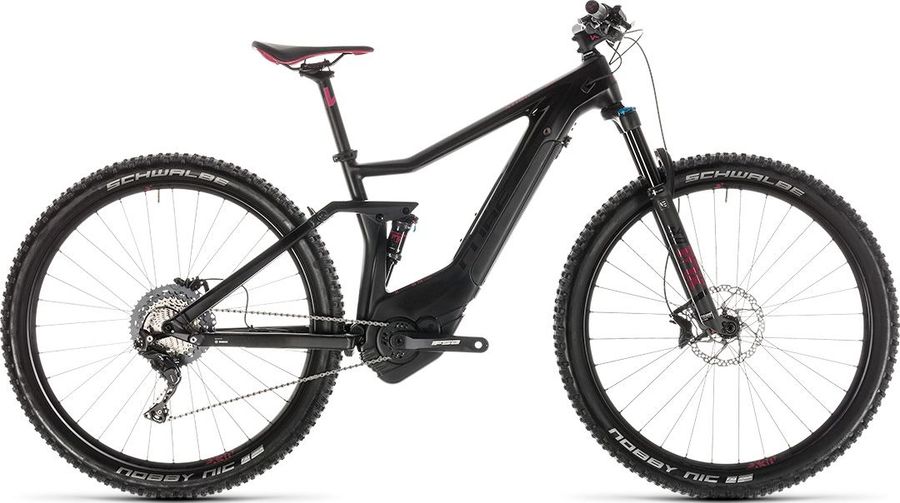

CUBE STING HYBRID 120 HPC SL 500 KIOX 2019
The CUBE STING HYBRID 120 HPC SL 500 KIOX 2019 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
The CUBE STING HYBRID 120 HPC SL 500 KIOX 2019 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
22,7 kg
Front travel
120mm
Rear travel
120mm
About the CUBE STING HYBRID 120 HPC SL 500 KIOX 2019
The CUBE STING HYBRID 120 HPC SL 500 KIOX 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 22,7 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
CUBE Race SL Grip 29.5, 1-Clamp
|
|---|---|
|
Pedals
|
CUBE PP MTB
|
|
Remote
|
Bosch Kiox
|
|
Steam
|
Newmen Evolution 318.4, 31.8mm
|
|---|---|
|
Saddle
|
Natural Fit Active Race WS
|
|
Battery
|
Bosch PowerTube 500
|
|
Charger
|
Bosch 2A
|
|
Headset
|
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
|
|
Seatpost
|
Newmen Evolution, 31.6mm
|
|
Handlebar
|
Newmen Evolution 318.20, 760mm
|
|
Brakes
|
Shimano BR-MT500
Hydraulic disc brake
2 piston
|
|
SM-RT56* |
|
|
Crankset
|
FSA CK-745, 170mm, 15T
|
|---|---|
|
Motor
|
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
|
|
Shifter
|
Shimano SLX SL-M7000
|
|
Rear derailleur
|
Shimano Deore XT RD-M8000-GS
271 g
GS
11s
|
|
46T(1x11-speed) |
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Chain
|
KMC X11
|
|
Frame
|
C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control 4-Link, Agile Trail Geometry, Boost 148, Tuned Drive Position, AXH, Full Integrated Battery
|
|---|---|
|
Rear suspension
|
Fox Float DPS
|
|
Front suspension
|
Fox 34 Rhythm
|
|
Rims
|
CUBE EX30, 32H, Disc, Tubeless Ready
|
|---|---|
|
Tires
|
Schwalbe Nobby Nic, PerfL, 2.60
|
|
Rear hub
|
Shimano FH-MT400-B, 12mm, Boost, Centerlock
|
|
Front hub
|
Shimano HB-MT400-B, 15QR, Boost, Centerlock
|
Geometry
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
420,0
|
460,0
|
500,0
|
|
b
Seat tube angle
|
73,7º
|
73,2º
|
73,2º
|
73,2º
|
|
c
Top tube length
|
570,5
|
590,0
|
608,0
|
626,0
|
|
d
Head tube length
|
105,0
|
110,0
|
120,0
|
140,0
|
|
e
Head tube angle
|
68,5º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
44,0
|
50,0
|
51,0
|
51,0
|
|
g
Trail
|
93,0
|
97,0
|
96,0
|
89,0
|
|
h
Wheelbase
|
1149,0
|
1190,0
|
1209,0
|
1229,0
|
|
i
Chainstay length
|
473,5
|
487,0
|
487,0
|
487,0
|
|
j
Bottom bracket drop
|
29,5
|
30,0
|
30,0
|
30,0
|
|
k
Stack height
|
592,0
|
600,0
|
609,0
|
628,0
|
|
l
Reach
|
403,0
|
415,0
|
430,0
|
442,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
326,0
|
344,0
|
344,0
|
325,0
|
|
y
Front center
|
677,0
|
705,0
|
724,0
|
744,0
|
